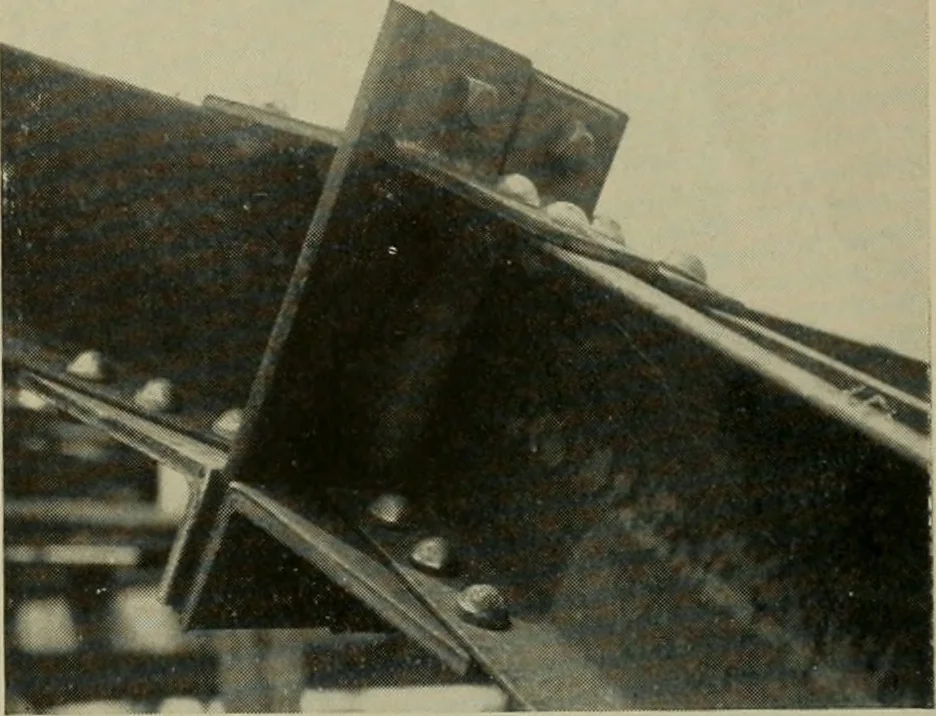

roof has a clear spanof 70 ft. and is 120 ft. in length, givingan unobstructed floor area in the secondstorv of 8400 square feet. The building has a reinforced concreteframe with brick filler walls and reinforcedconcrete floors and stairways. The girderat the roof line encircling the structure… … DETAIL OF STEEL LAMELLA ROOF, COCO COLAWAREHOUSE, LOS ANGELES from the roof frame the girders are tied to-gether transversely with 2-in. steel rods inpairs anchored to steel plates on the out-side of the girders and joined in the middlewith turn-buckles. There are seven pairsof tie rods spaced…
