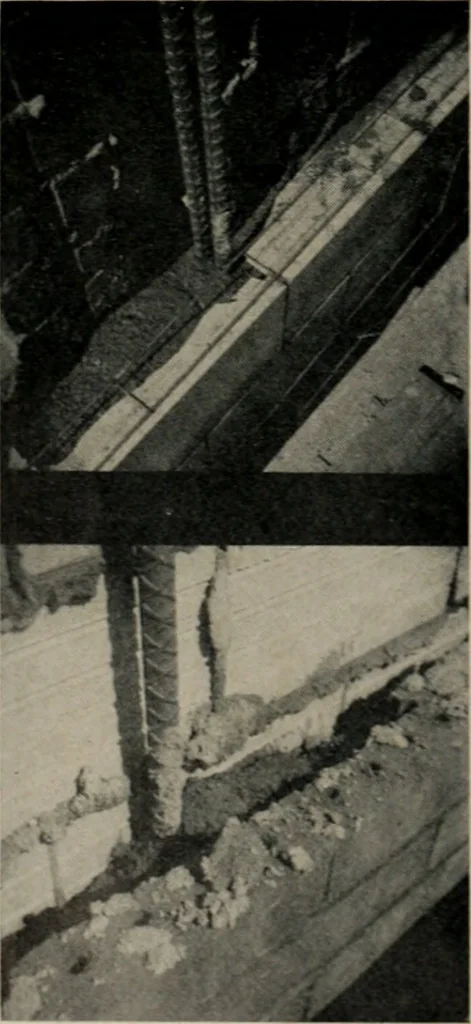

einforced andconsidered as a free standing self supporting element in imposingany lateral loads on the roof framing. Stability was derived from thecurved shape. Heovi reinforcing would hove been required had thiswall been straight in plan. The grouted reinforced masonry and itsversatile use as to… … COMPOSITE WALL This shows how one withe can be constructed of structuralglazed tile with the other withe of brick work. The ladderreinforcing arrangement of wires is the type that was usedin the intersecting cross walls of structural glazed tile. Ascon be seen, these elements would lie in the…
