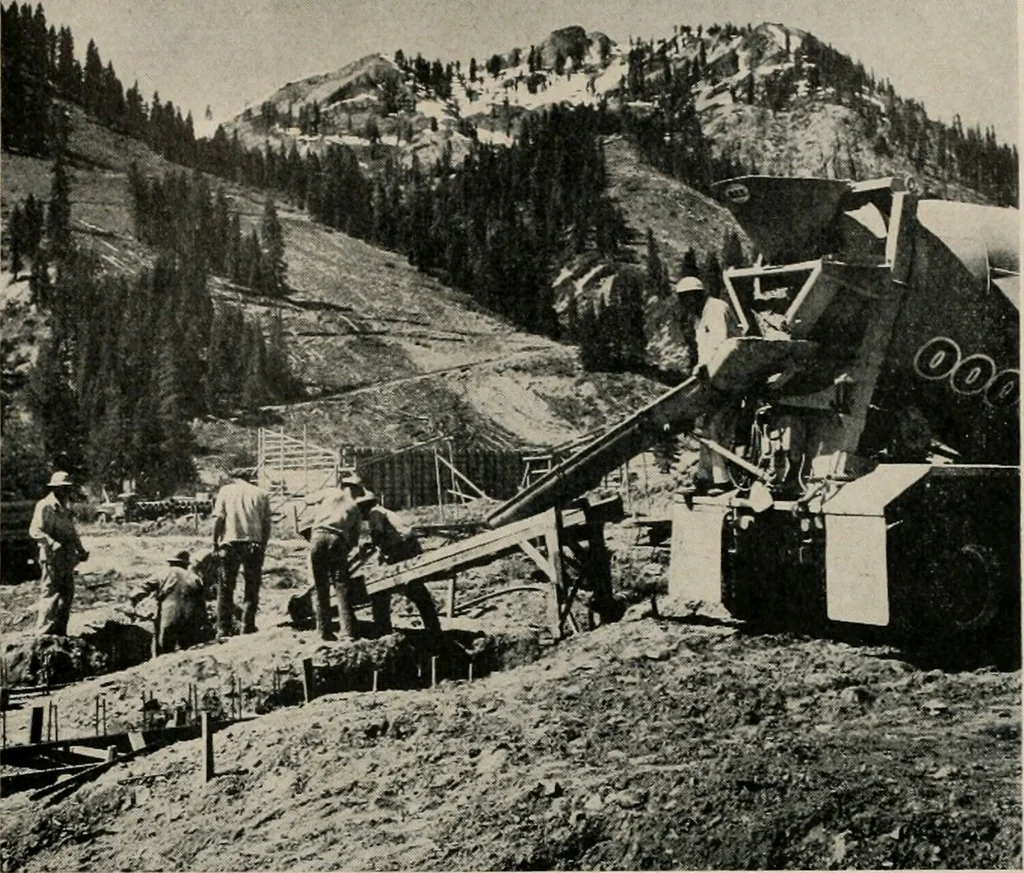

t ARCHITECT AND ENGINEER 1960 OLYMPIC WINTER GAMES ICE ARENA Workers pour concrete forfoundation of the Ice Arena—mens and womens slalom,mens and womens giant sla-lom and womens downhill skiraces will be held on themountains in the background. BELOW: Artists drawing ofthe completed ice Arena. … The roof structure consists of a cellular steel deckspaning 11-4, rolled steel beam purlins spanning32-0, and the main supporting frames at 32-0 cen- ters, spanning 300 ft. The main suporting frames consist of taperedcolumns built up from steel plates, tapered steel box
