The Architect & engineer of California and the Pacific Coast (1905)
San Francisco, Calif. : Architect and Engineer Co · leaf 445

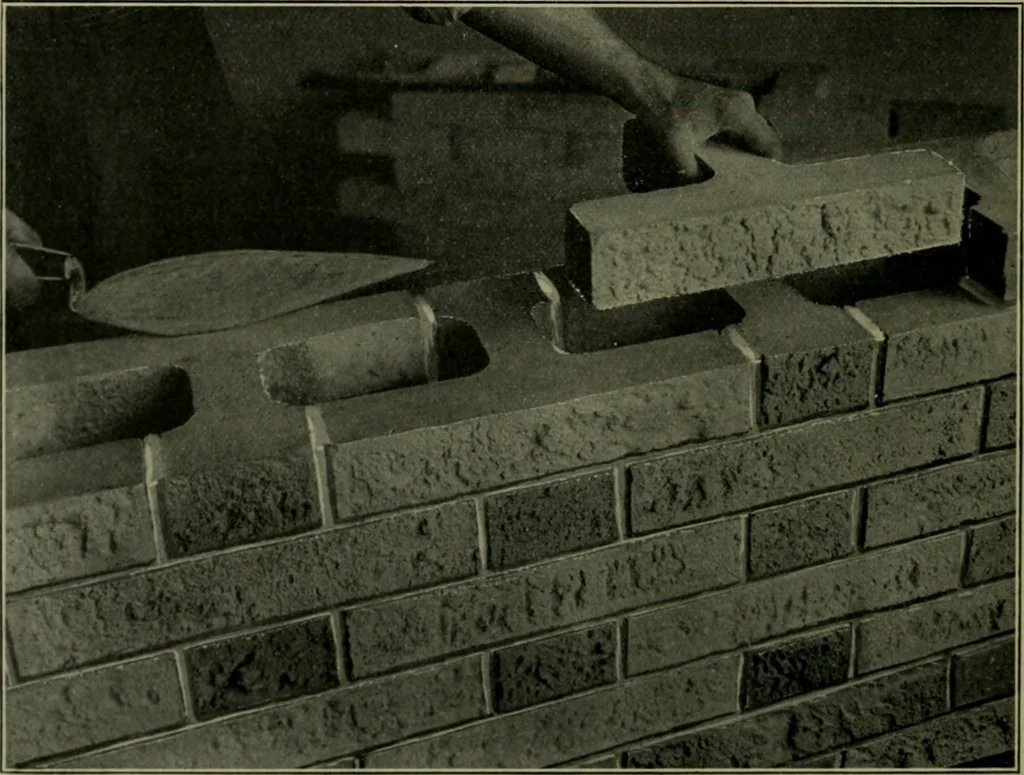

l^ffe H^7 ir -t -i Plonk Frame Figs, ii and 12.—To indicate how simply the new brick adapts itself to door and window openings. It is unnecessary to show more details except to indicate how simply thenew brick adapts itself to door and window openings as shown in figures 11and 12. Regarding the… … Fig. 13.—An interesting version of an old cell balanced Flemish bond. Can be laid twice as fast as ordinary Flemish walls. The Architect and Engineer 93 In figure 13 an example is shown of a specially designed brick with a frontstretcher webbed to a header of one-third the area. The result is an…
