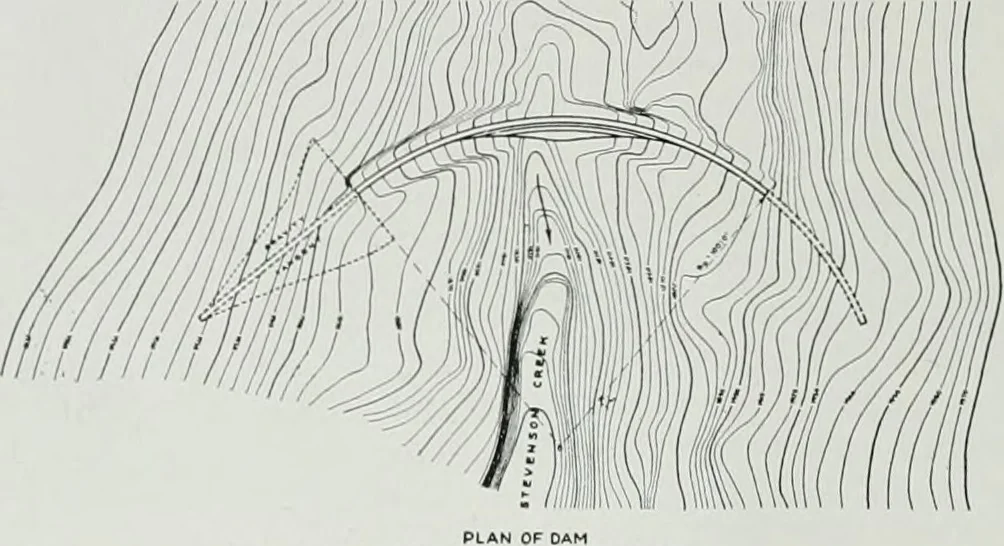

00 ft. The dam will be 7.5 ft. thickat the base and 2 ft. thick at elevation 30 and above. The bedrockwill be excavated on both side abutments so as to provide a symmetricalprofile. This arrangement will tend to avoid any complications thatmight arise from irregular profile, variable arch radius,… … ENGINEERtNG FOUNDATION TEST DAM Bt Contractor and Buikle be about 20 ft. at the base and about 125 ft. at a height of 60 ft. abovethe foundation. The dam and reservoir will be located entirely upongovernment land. The natural flow of Stevenson creek is diverted afew miles above the dam site. A…
