San Francisco : Architect and Engineer, Inc · leaf 528

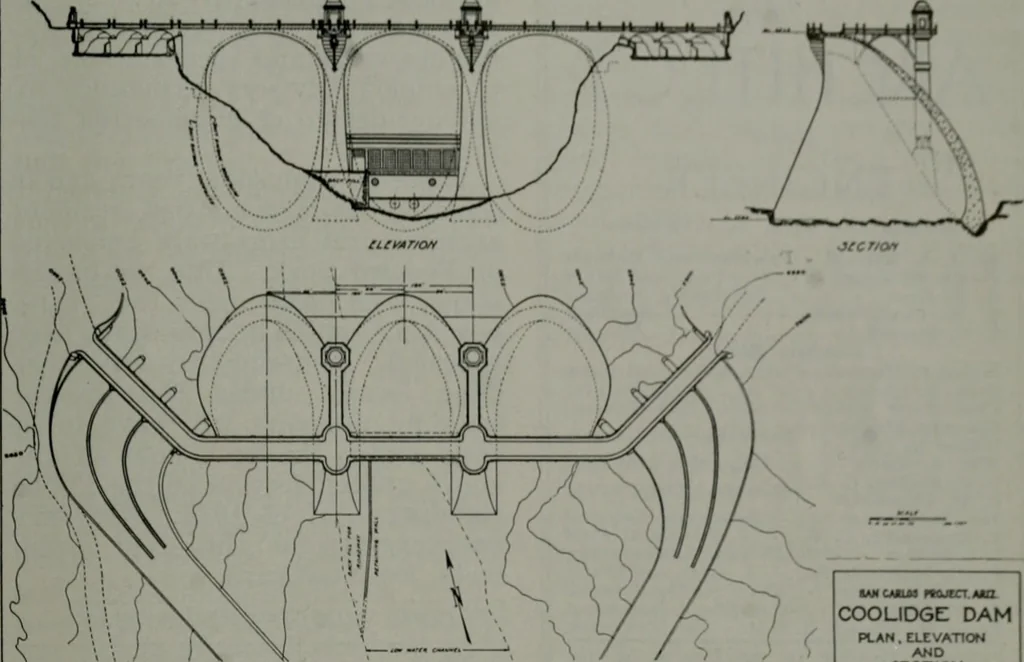

the dam is 250 feet and it rises 220 feet above the stream bed.The length of the dam or canyon width at the base is about 300 feet,while the distance along the crest is 580 feet exclusive of spillways.The spillways are each 150 feet in width. The distance from the rearof the dome along the base of… … •AMOWIM PtOJCTT JUnZ coolidge: dam PLAN. ELEVATION AND SECTION
