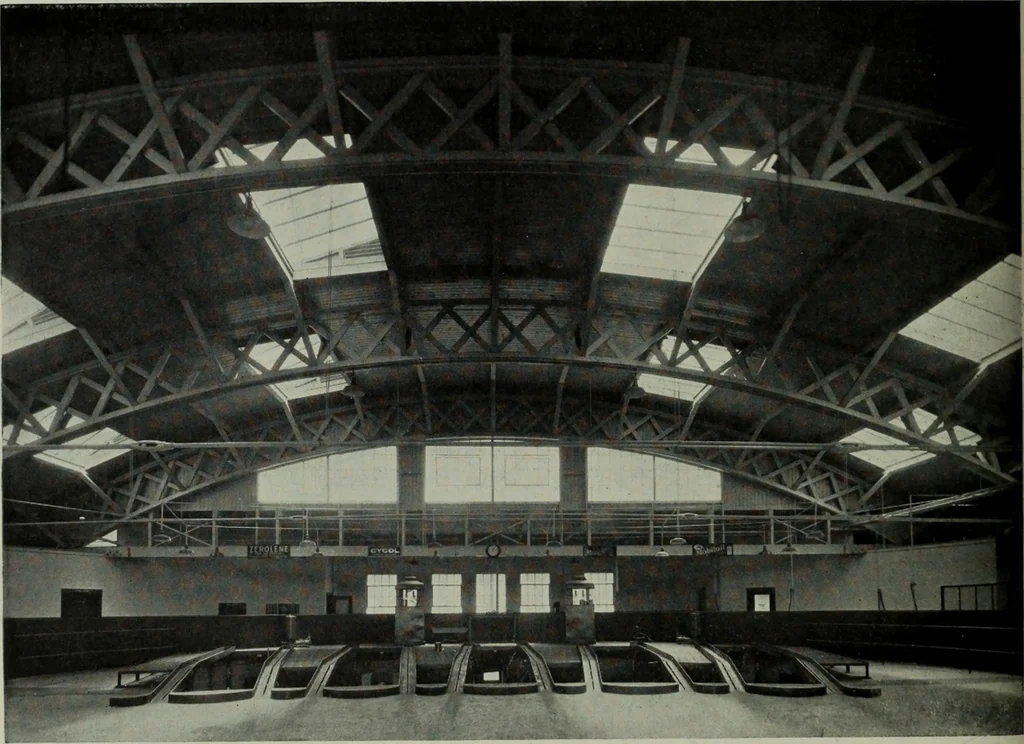

of the chord member,being vertical instead of horizontal, placethe nails which fasten them together insheer instead of tension as is the case withhorizontal lamination. as the arch has no long web members toobstruct light and ventilation when used forinterior spans and to interfere with the… … INTERIOR PACIFIC GILLESPIE SYSTEM BUILDING, SAN FRANCISCONote Wood Arch Construction All the wood members are of standardcommercial size of dimension lumber andall the web members are cut to the samepattern. No mortising or tennoning is re-quired. All the cutting can be done with asmall portable…
