Architectural drawing : a textbook that combines the parctical instructions and examples that the student needs, with the suggestive programs, supplementary problems, etc, required by the teacher, written by an architect of wide experience who has also taught the subject for years at Teachers' College, Columbia University, and Mechanics' Institute, New York (1920)

Teale, Oscar S · New York : U.P.C. Book · leaf 24

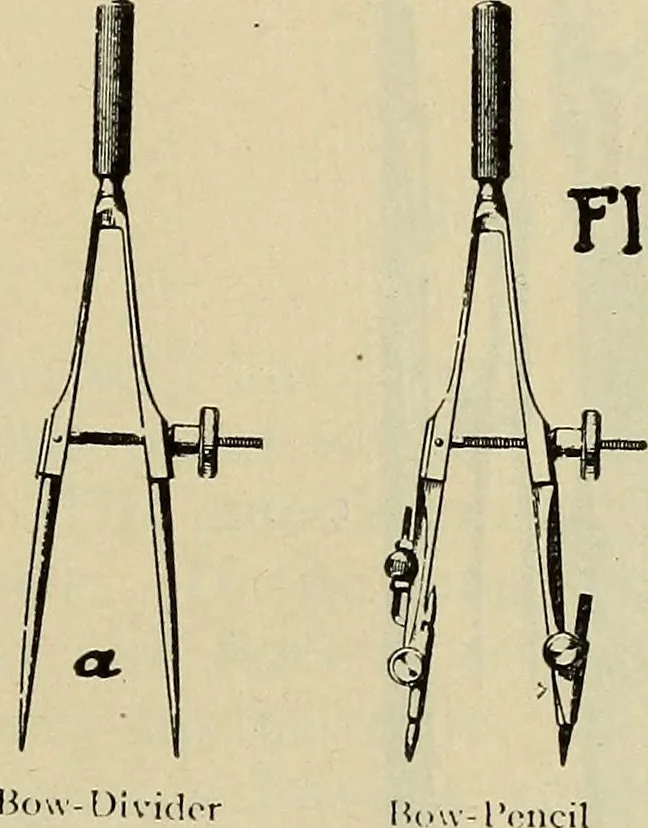

An illustration from Architectural drawing : a textbook that combines the parctical instructions and examples that the student needs, with the suggestive programs, supplementary problems, etc, required by the teacher, written by an architect of wide experience who has also taught the subject for years at Teachers' College, Columbia University, and Mechanics' Institute, New York, 1920, leaf 24
head, these instruments are of great serviceto the Mechanical draftsman, but not at all necessaryfor the beginner in architectural drawing. FIG, 14. Divider Compass Compasses and Dividers are two separate and dis-tinct tools. *See Figure 15a. TOOLS—DESCRIPTIVE 21 Compass—Every case of instruments…
