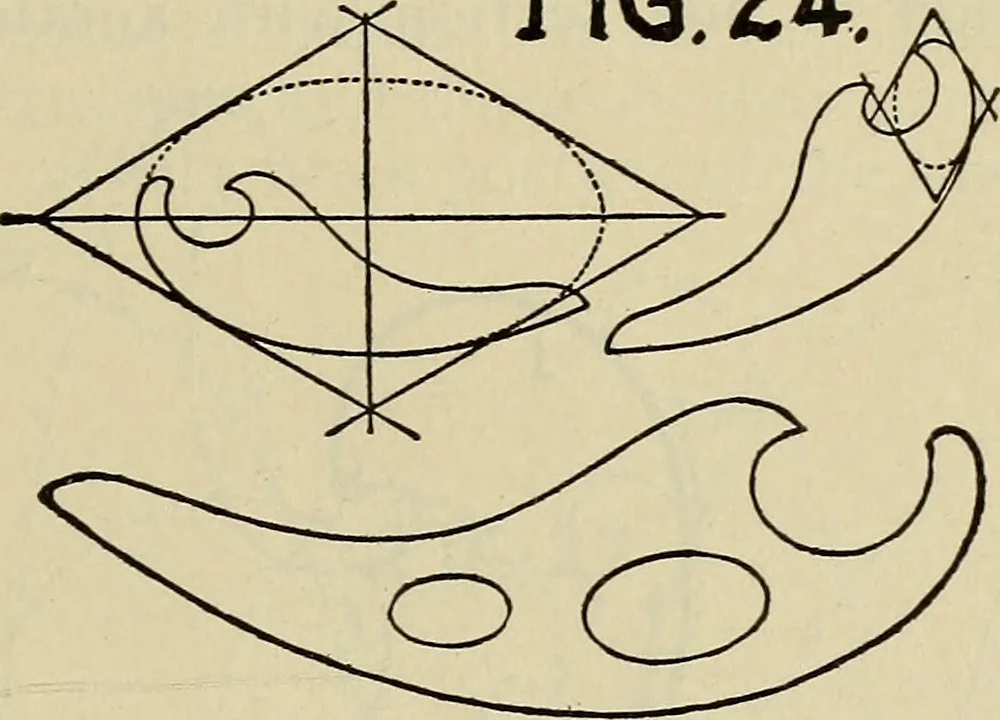

nt. -The French Curve is a veryIts use as before explained, is TOOLS—IN PRACTICE 33 to aid in the making of curved lines such as cannotbe well made with a compass (sweep) or free-hand.With a proper form of French Curve,* and carefulhandling of it, a very close approximation to an ellipsecan be… … other should be so manipulated that the point ofintersection, though perhaps a microscopic angle, isreduced to a minimum, if not disguised entirely. By a dexterous use of the French Curve a clean,sharp line can be made with either lead pencil or rul-
