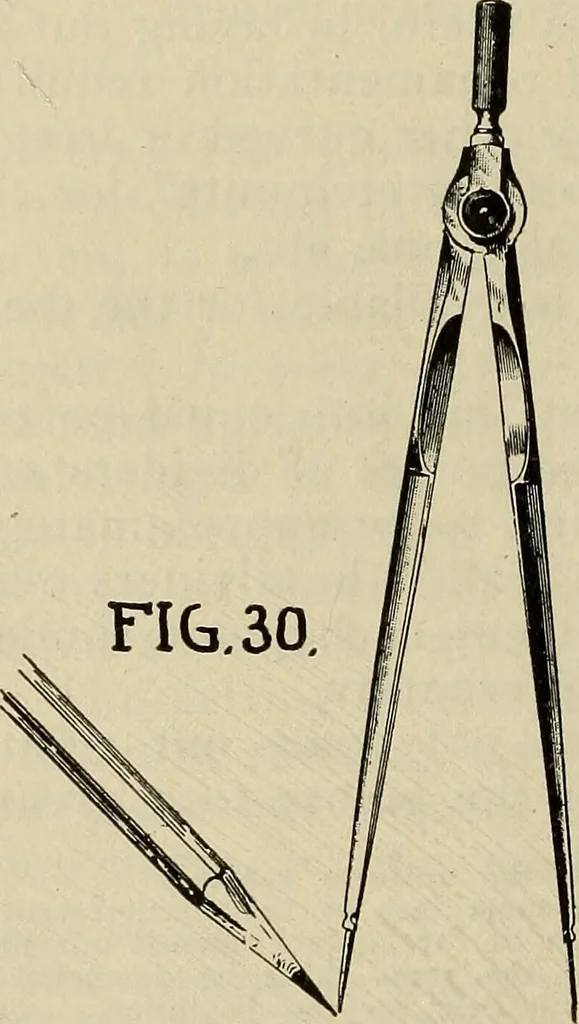

38 ARCHITECTURAL DRAWING spacing as necessary and try again. Continue thisexperimental spacing until the proper result isobtained. FIG. 29. The dividers are useful for transferring a measure-ment from one part of a drawing to another place.It frequently occurs that measurements must be re-peated,… … TOOLS—IN PRACTICE 39 It is not at all necessary to punch holes in the paper(as many beginners do), such holes disfigure thedrawing and serve no possible purpose. It is muchbetter practice to merely rest the points on the paperby the slightest possible pressure, in such manner asto leave a point…
