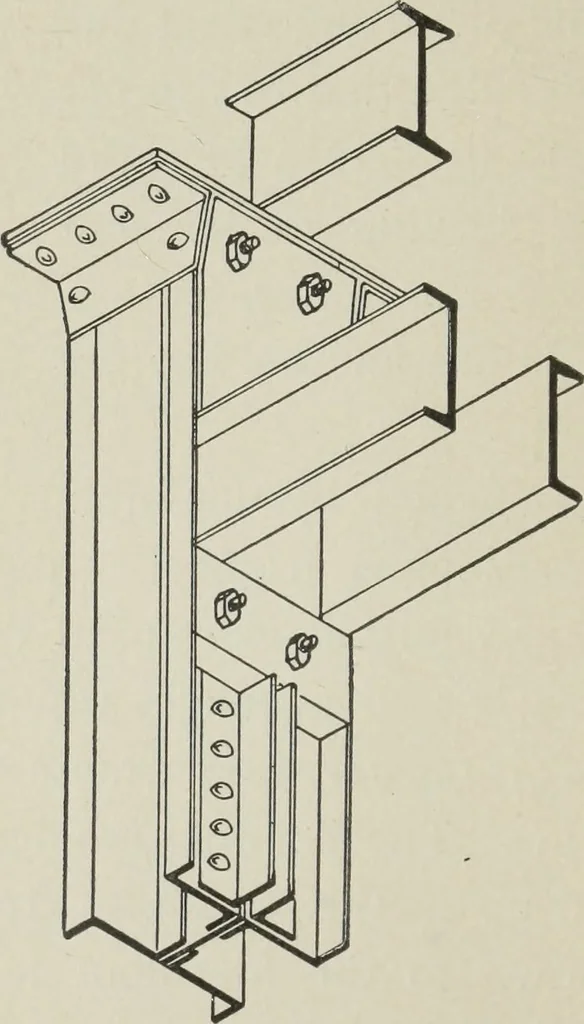

*4 1» I WJi/y/v 2SffC//AA/NELS J2 2-133. \ Fig. 93. to resist the bending moment which the stopping of therods necessitated, and as a further assurance that these con-nections should be as strong as the rest of the system, the … Fig. 94. top connections of all of the first-floor beams were omitted,and the clearance spaces between all the beams and WIND BRACING. 147 columns were driven tight with thin metal wedges, untilthe girders and beams passing along the column axes werecontinuous and in compression out to the sidewalk…
