Architectural engineering. With special reference to high building construction, including many examples of Chicago office buildings (1895)
Freitag, Joseph Kendall · New York, J. Wiley & sons; [etc., etc.] · leaf 172

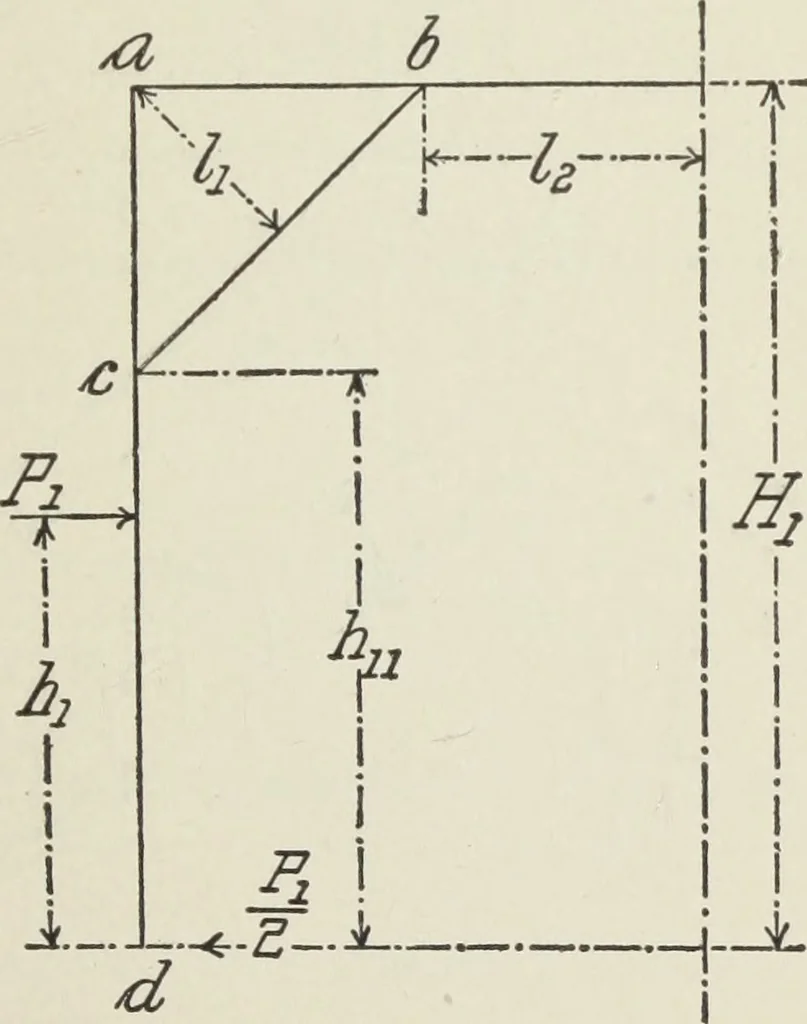

s can be used without great expense ortrouble. The portal arrangement certainly makes a fineinterior appearance if the arched openings are given aslight decorative treatment in plaster, as was done in theOld Colony Building. The floor plan will generally governthe use of either one or the other… … Fig. 100. heavy bending moments in both the horizontal struts andin the columns themselves. This system may be analyzedas follows (see Fig. 100) 154 ARCHITECTURAL ENGINEERING. The shear at the top-floor level will be ~ at each column. P h Then as before, Vt — -y-1. The tension in the brace cb is…
Building, Iron and steel
