Mechanics and heat; a text book for collleges and technical schools (1916)
Franklin, William S. (William Suddards), 1863-1930, Macnutt, Barry, 1878-1936, [from old catalog] joint author · New York, The Macmillan company; London, Macmillan & co., ltd. · leaf 214

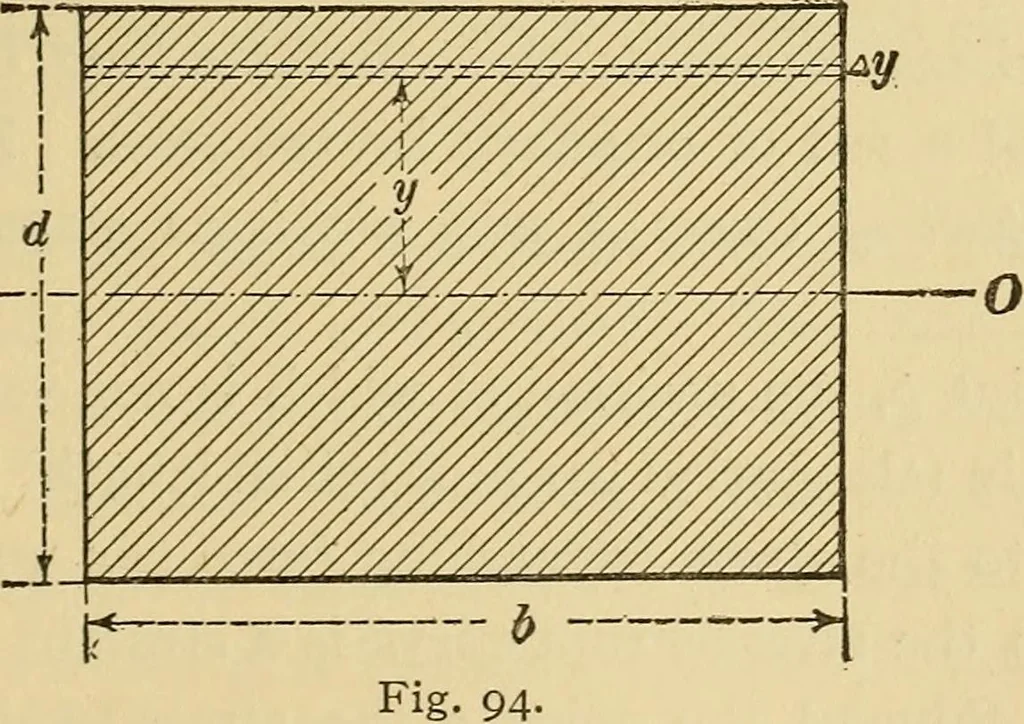

perpendicular to the plane of the figure. This axis is shown asthe line 00 in Fig. 94, which is a sectional view of the beam, o— … b being the breadth of the beam and d its depth. The torqueaction is expressed by the equation 200 ELEMENTS OF MECHANICS. i bd3ET = iV-^ (iii) But the torque action across every section of the beam betweenthe two supports 55 in Fig. 88 is equal to Wx, so that i bd3E^ = iV-£- (iv) from which E may…
