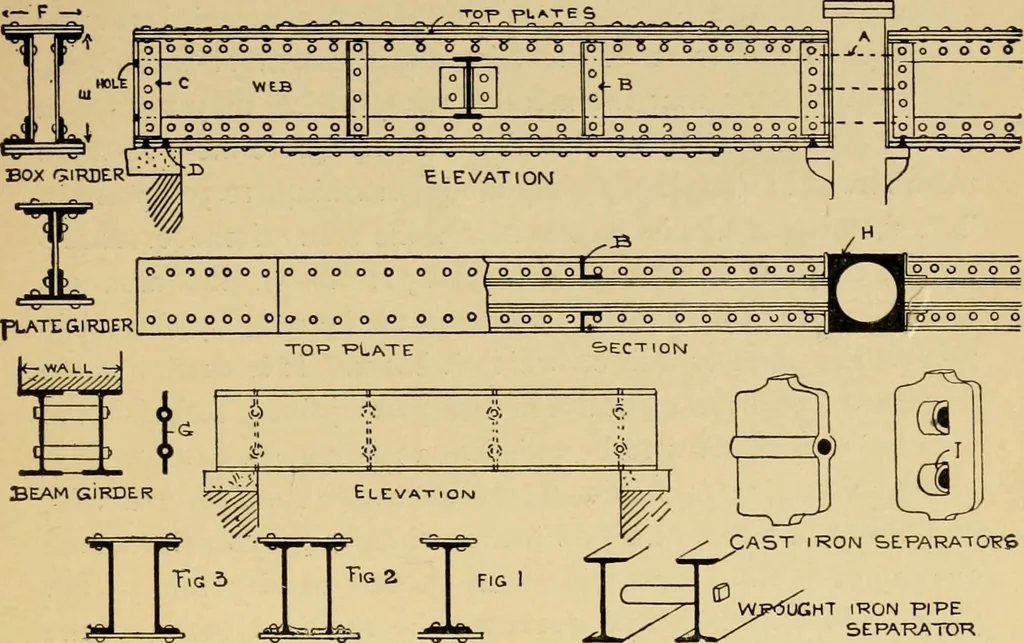

are stiff en ers, with fillers at theback extending under the same between the chord angles. Fig. 1 is a single beam with a wrought-iron plate to increaseflange area; riveted to flanges with four lines of rivets. Fig. 2 is a double beam girder, used similarly to Fig. 1. GIRDERS. 2^ Fig. 3 is a… … WROUGHT IRON PIPESEPARATOR CHANNEL GIRDER The simplest support for a brick wall is two I beams side by-side, or any number placed to suit size of wall and weight tobe sustained. (See elevation and section of beam girder.) 62. Separators.—To accommodate the thickness of wallcast-iron separators are…
