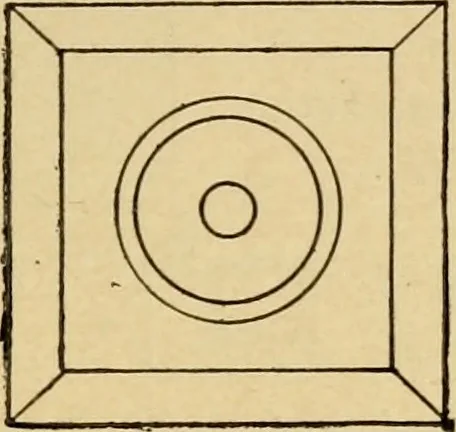

of rib (K) may be two thirds the projection ofy, and be found to be a good angle to resist bending. 114. Flat Base Plates—are used in most cases for smallcolumns, or columns with light loads, also plain plates withoutthe bevel A. The ring is used for fitting in the column in eachcase. This plate is… … 115. Grouting.—To grout a base plate properly, allow onehalf to three quarters of an inch space between base stone andplate, with the base stone trimmed off true and level; set platein its proper place (also level); make a bed of cement on allsides of bottom, to prevent mixture from spreading…
