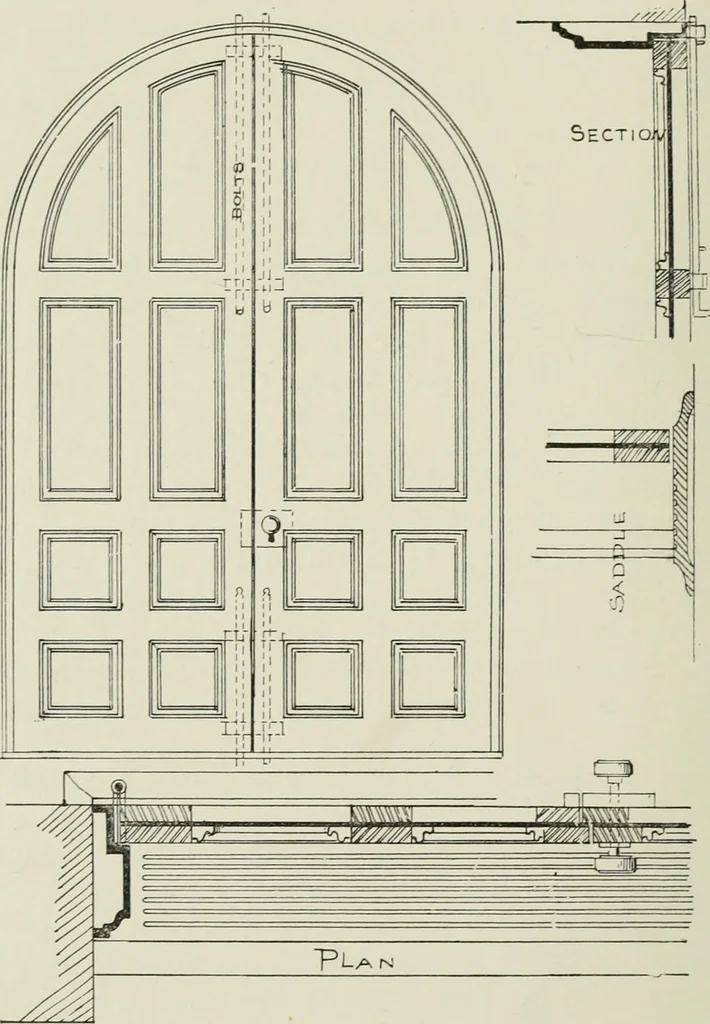

tering the opening. The door frame is made of 2 X ^-inch flat wrought-ironbars, and covered with sheet iron of No. 12 to No. 14. craus-e(No. 12 being the heaviest), with rivet-heads, 4 to 6 inchesbetween centres, projecting above the surface. The doors are secured to the cast-iron frame by… … stiffness to the doors when closed. To secure them whenshut, a padlock is placed in centre, with bolts at each end. DOORS AND SHUTTERS. 97 A 4.inch-diameter ring ^ inch thick is placed on the outside,by which to raise the doors when required to be opened. To! o~ o o ^o o o o o ~1K(il o o o o o…
