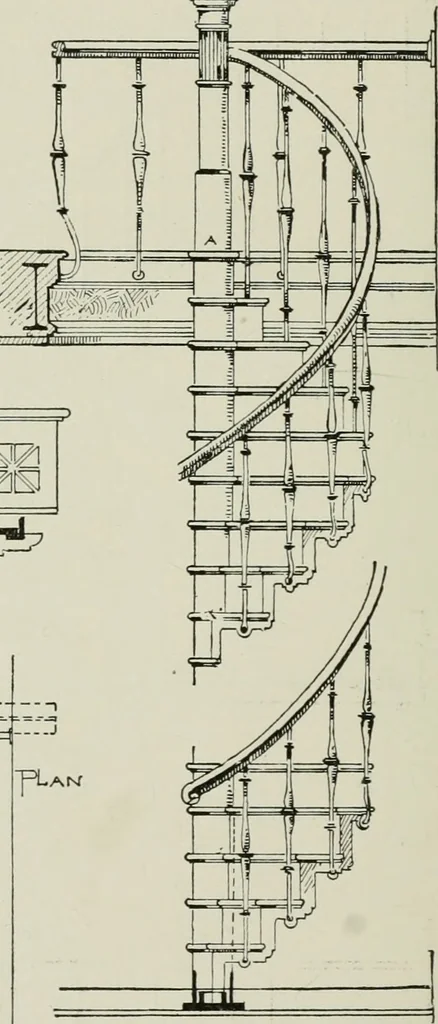

PAT»T ELEVATION! and secured to a 4 or 6 inch diameter wrought-iron pipeextending the full height of stairs. In adjusting the plan, it is important that the head-room STAIN IVAYS. 77 be sufficiently large to allow passage up and down : it shouldnot be less than 7 feet from top to bottom of treads.…
