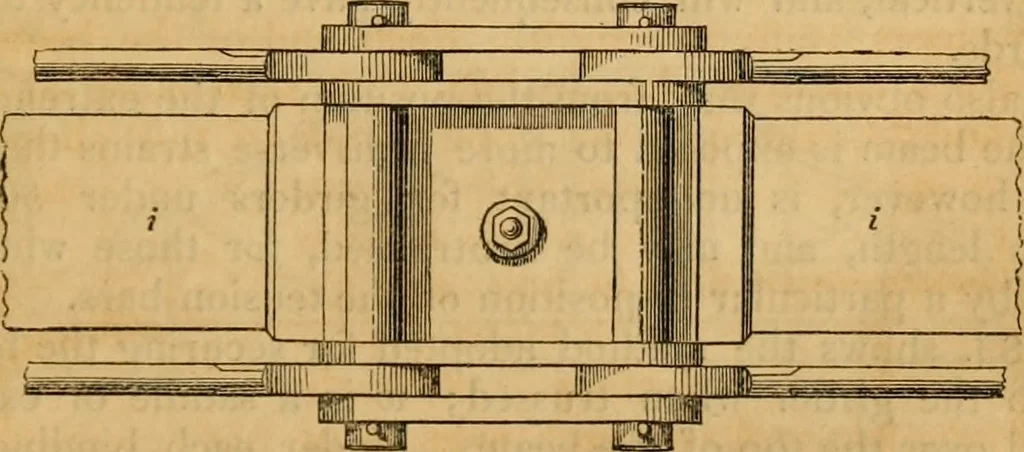

more effectually to embrace thetimber. A f in. bolt {jj, in Jig. 77.) passes through the centreaf this casting, and vertically through the beam, to ^retainit in its place, until the tension bars are drawn up. Againstthis casting, in two semicylindrical seats, lie two cross bolts,equal in size to… … It is seen from,y%. 72. that there are two tension bars on eachside of the beam, inclined to each other at an obtuse angle;and each of these consists of two lengths, each having an eyeas before described at one extremity, and a screw at the other.
