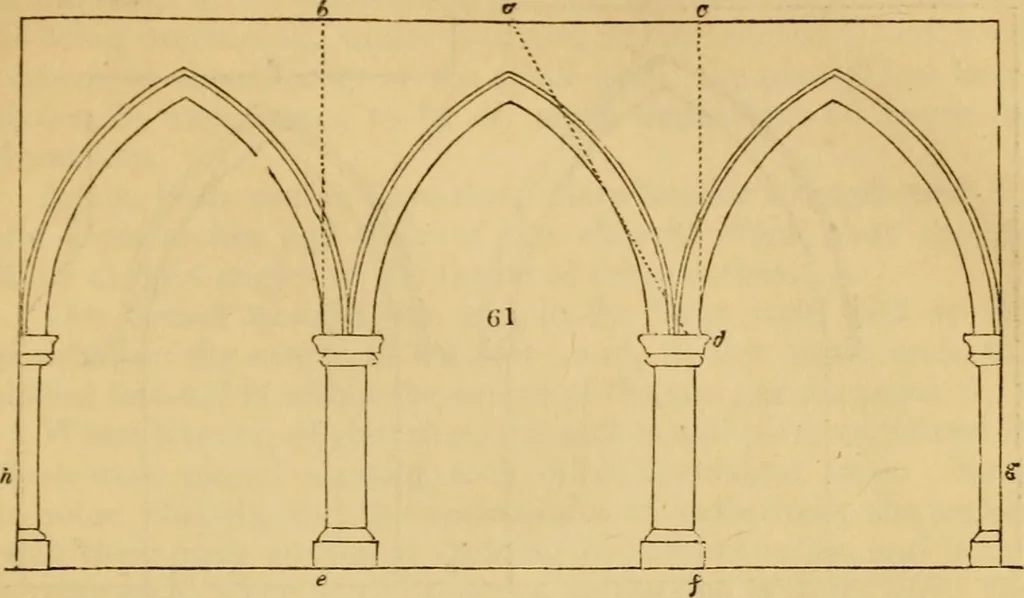

heone sixth of the span, the reduction in the height of the pier mustbe 2 ft. 3 in. Now, this sum, taken from the span of 14 ft. 3 in.,makes the true height of the pier to be 12 ft.: but the height ofthe pier is 11 ft. 2 in.; therefore it is 10 in. within the balancingpoint. On submitting one arch… … masonry was erected on the arch, equal to the proportions repre-sented in the engraving, and as contained within the dotted linesand the piers b e, fc, the arch and piers carried on a 2^ lb.Now, the weight of one pier equals If lb.; consequently, thearch will carry, or balance with, nearly twice…
