Sloane, T. O'Conor (Thomas O'Conor), 1851-1940 · New York, N. W. Henley & co. · leaf 17

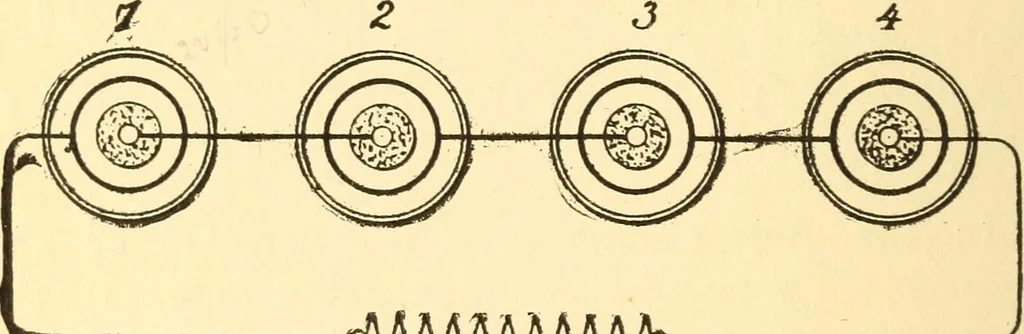

4 ohm; Battery No. 2 of 1.75 volts, 2ohms; Battery No. 3 of 1 volt, 1 ohm; Battery No.4 of 1 volt, 4 ohms constants; Batteries 1 and 4 arein opposition to 2 and 3. What are the effectivebattery constants? … -A/WV\AAA/\A^ Solution: Voltage = (2 + 1) — (1.75 +1) = .25 volt.Eesistance = j4 + 2+1 + 4 = 7^4 ohms, or .25volt, 7^ ohms constants. What current will such a combination produce ina circuit of 5 ohms resistance? Solution: By Ohms law, Rule 1, the current =.25 ■*- (7% + 5) = .02 amperes. A battery…
Electricity
