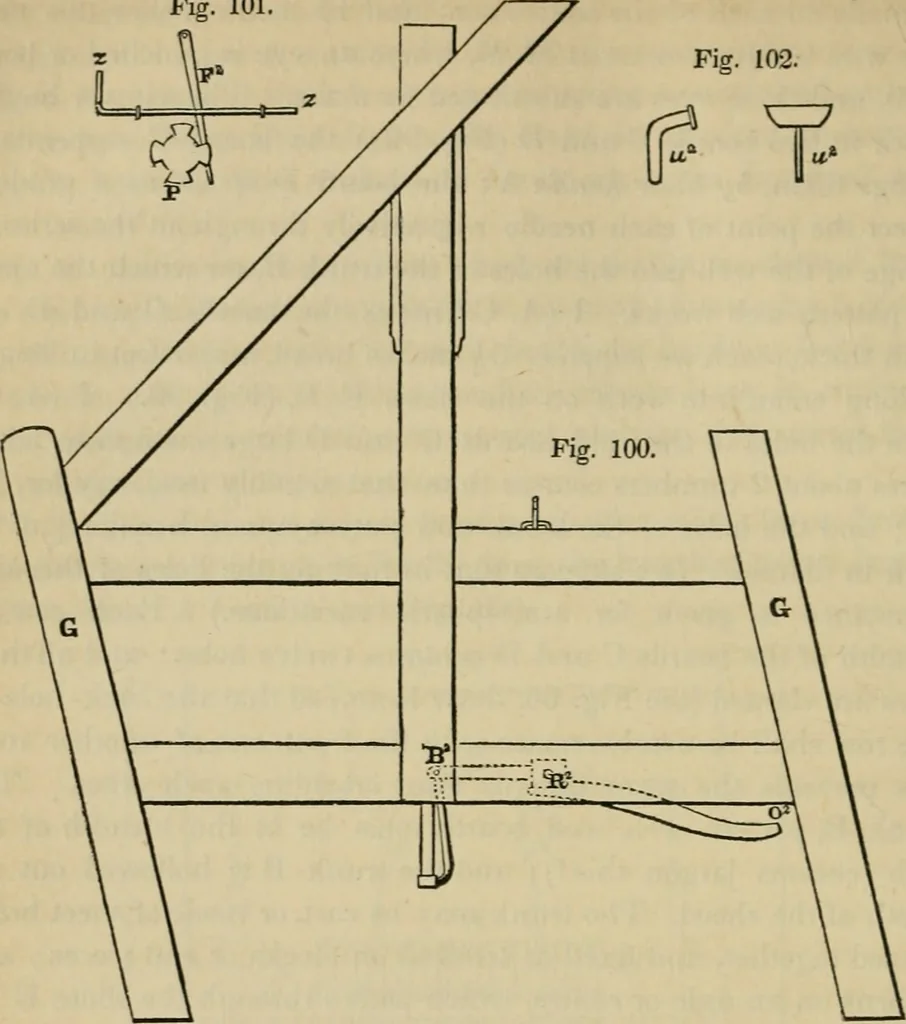

re metallic rods, which pass through theboard C, and are screwed or otherwise secured to the board D : theends Q, Q- of these rods guide the board D, and keep it in its properplace. The under extremities of the slides E E are attached to theends of the lever or cross bar R, (which may also be seen… … caught in its descent by the hooks T T (see Fig. 99,) attached tothe frame of the loom at S S. W W are levers, which work in the sUdes E E, and arepressed by springs K K, in order to bring and keep the tmnksquare (as is well understood, of coiu-se, bemg so hke the ap-paratus used for a siQiilar…
