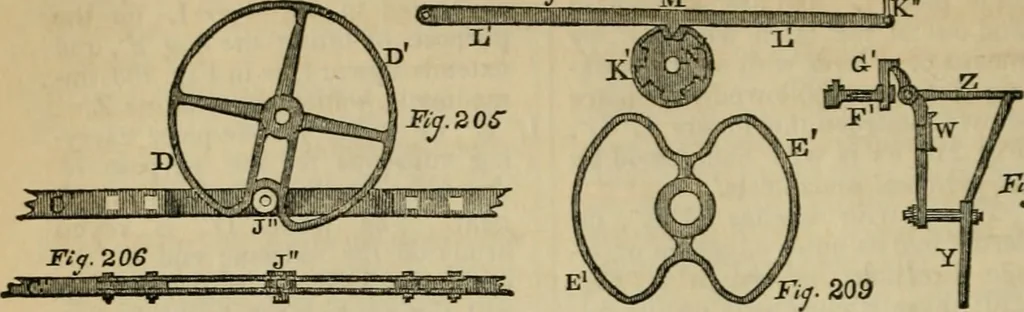

shoes, bolted on the treadles (one shoe to each treadle) inregular succession from right to left, until they are all gone over andeight picks of weft given. It is with this design that they are placedspirally on the cam shaft HH, as represented in Fig. 211. Bythis arrangement may be obtained all… … Fiq.ZOS into nine equal parts, eight of which are occupied by the cams II:the ninth part corresponds to the opening or jog of the cam wheelD D. Motion is communicated to the cam shaft H H, by thewheel O, (Figs. 203 and 204.) shown on its axis ; and the pinionwhich meshes into it (Fig. 203) is fixed…
