The art of weaving, by hand and by power, with an introductory account of its rise and progress in ancient and modern times (1844)
Gilroy, Clinton G · New York, Baldwin · leaf 463

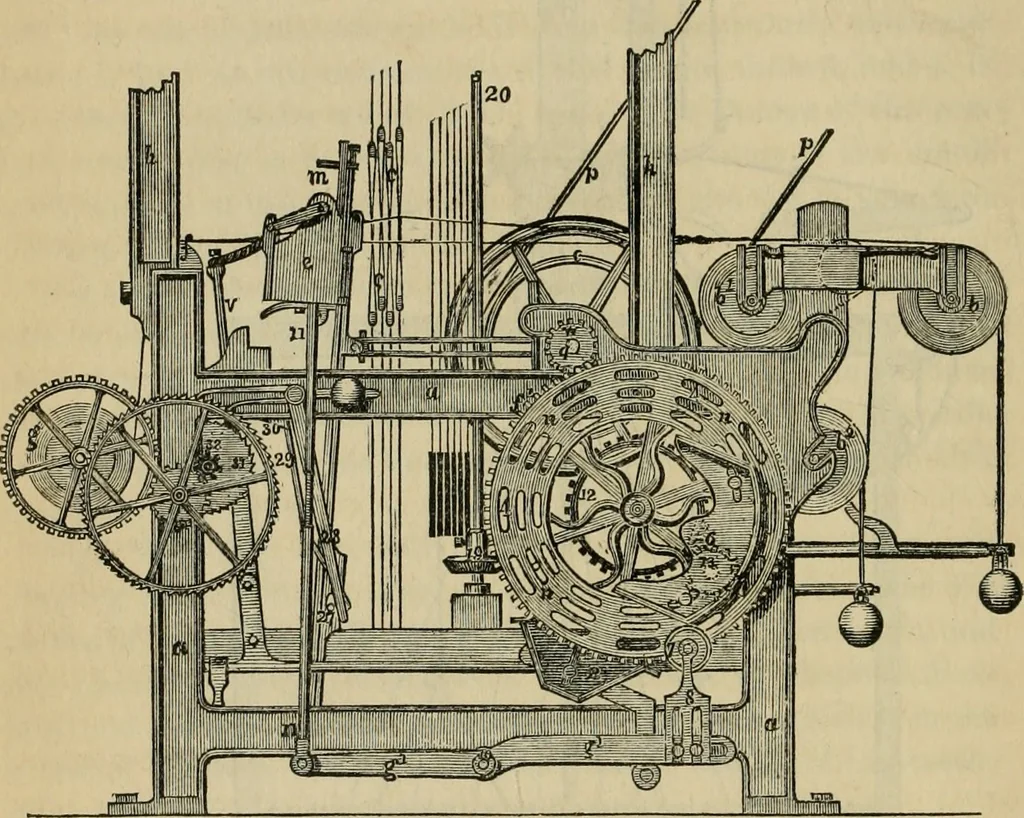

440 THE ART OF WEAVING. exhausted in the shuttle, or when the taking up of the clothupon the cloth roller is not equal to its production ; such motion be-ing governed by the ordinary beat or vibration of the lay. Fig. 212, represents a front elevation of the improved power loom;Fig. 213, a side… … The framing of the loom is marked a, a, a, supporting the severalwarp rollers 6, 6, 6^, from whence the warp threads proceed throughthe headles c, c, also through the reed d, d, of the lay e, over thebreast beam /, to the cloth roller g; as usual. This loom is alsoprovided with an additional…
Weaving
