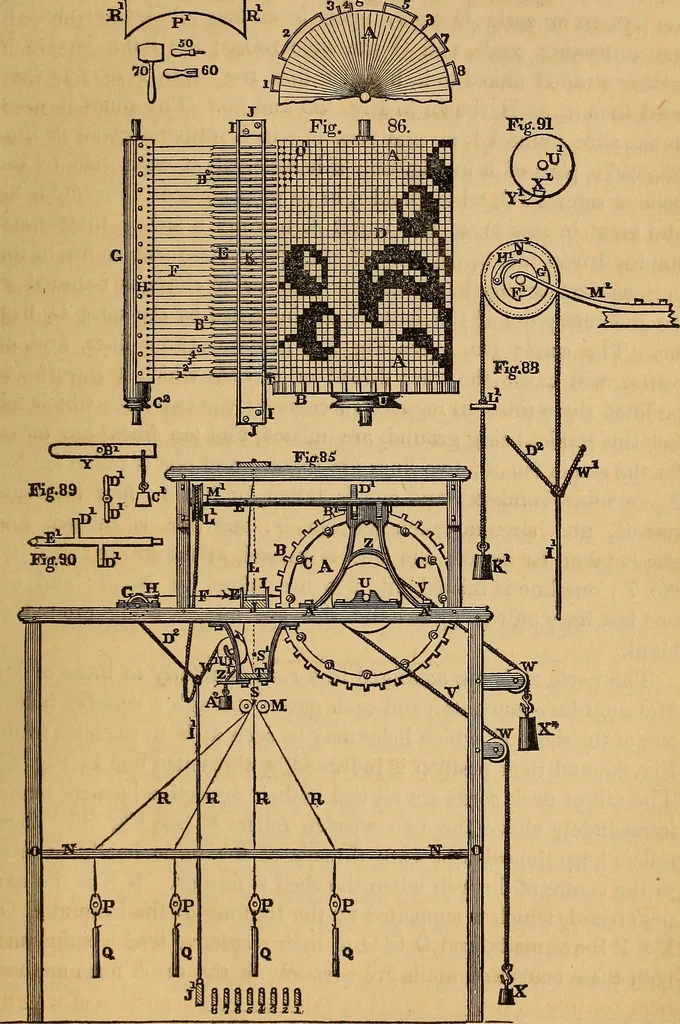

s improve-ment consists in using a barrel or cylinder, on the surface of which,the figure or pattern to be produced in the cloth is arranged in re-lief, precisely in the same way as tunes are disposed on the barrelof the common organ, or on that of a musical box, by inserting wire THE ART OP… … Fig. 85 represents a front view of this loom, as it appears whenthe shed is formed. A is the barrel; B a spur wheel fastened to its 184 THE ART OF WEAVING. end by the screws C C: this wheel, by means of proper catchesand other machinery, to be hereinafter described, governs the rota-tion of the…
