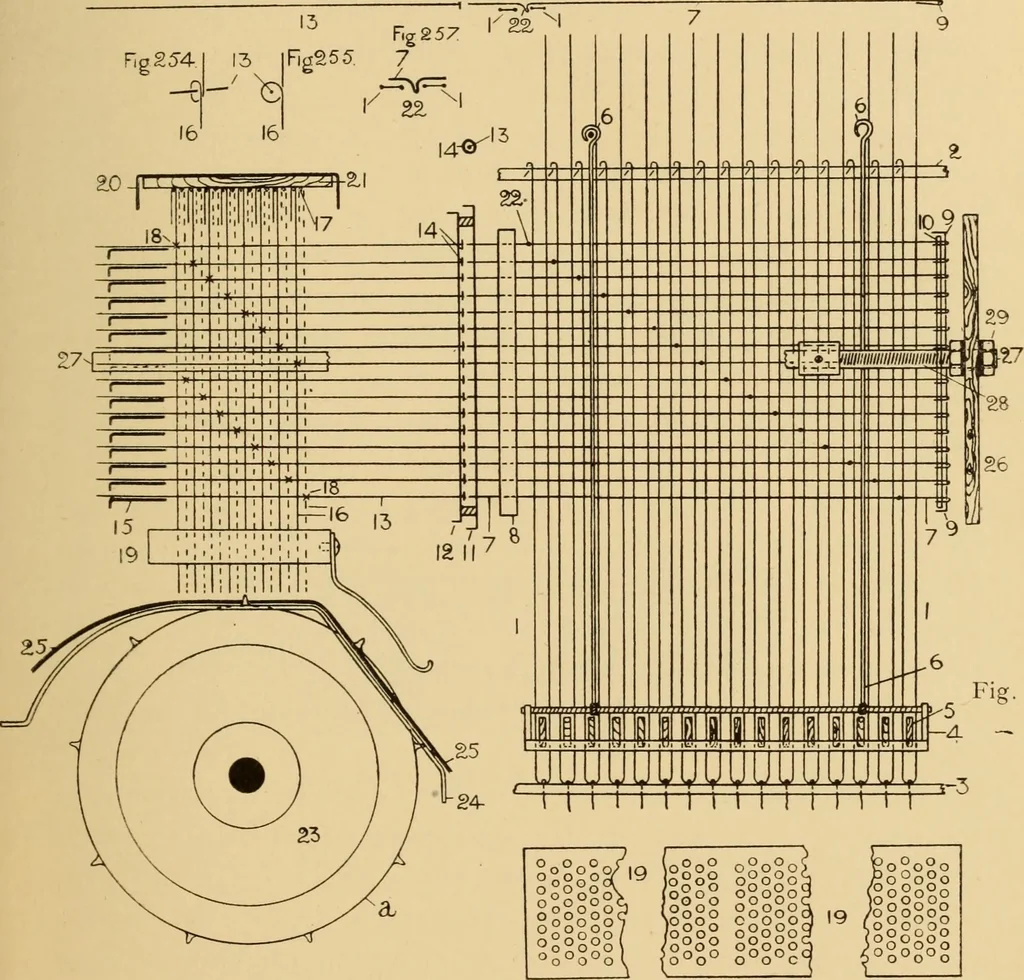

s rigidly connected into a compact series by brass mountings theends of which are adjusted and set screwed to suitable bracketlevers which together with the angle plates 15 are free to travel INDEX AND SPECIAL TYPES OF JACQUARD MACHINES. 247 outwards to the left and simultaneously rise on every… … Fig. 252 Fig. 253 Fig. 258 separate needle 13 at the points 18 as illustrated separately at Fig?.254 and 255. The lower terminals of the suspended wires 16 arethreaded through perforations in a fixed plate 19, a plan of which,showing the arrangement of the perforations is supplied at Fig. 258. 248…
