Gilroy, Clinton G · New York, G. D. Baldwin · leaf 314

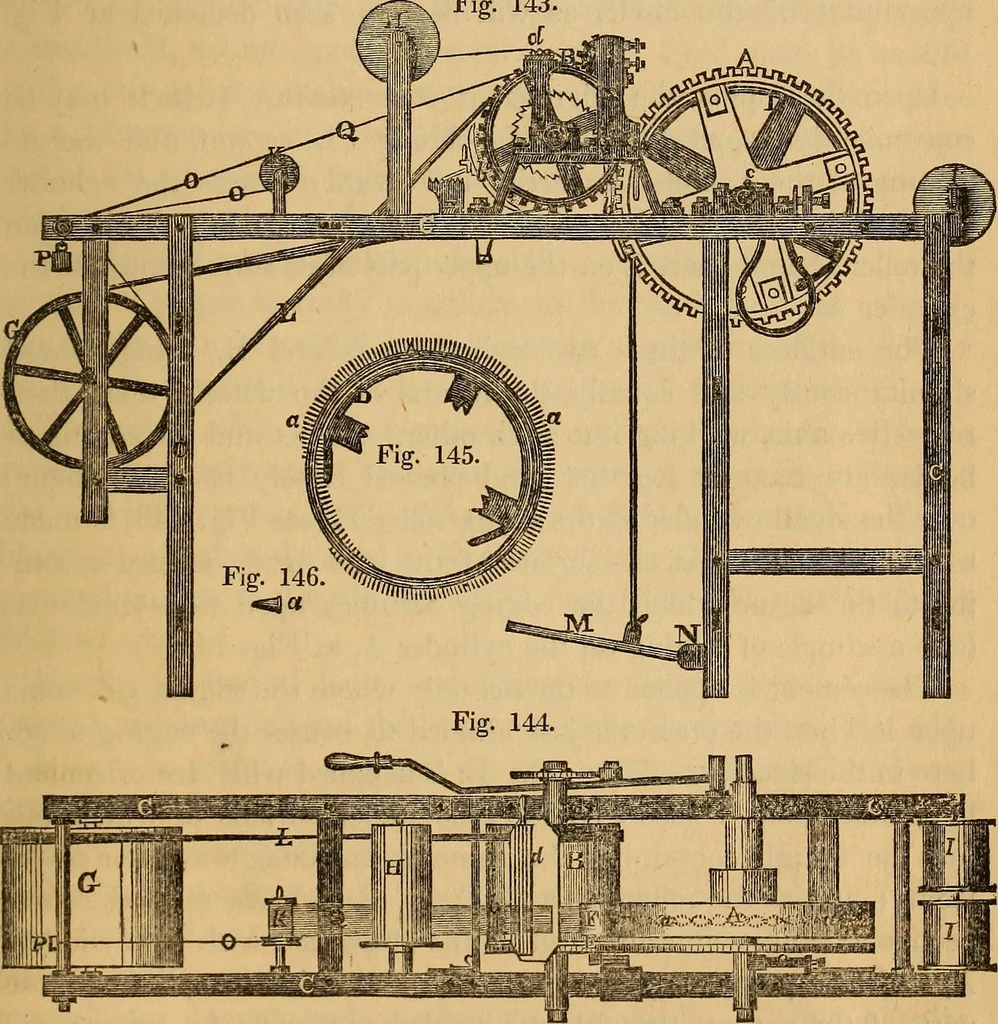

at particular design, by puttingthem on pins, as shown at Fig. 144, will sufficiently illustrate thenature of the invention ; and it will be evident, that by varyingthe forms of arrangement of the pins, with corresponding or suit-table indentations or spaces in the edgings, varieties of figures… … Fig. 143 represents a side view or elevation of the machine,composed of the large cylinder A, and the small cyhnder B, andtheir accessories, mounted upon a frame C. The rim of the large 294 THE ART OF WEAVING. cylinder is pierced with holes, to receive the pins a, a, (see Fig. 145and 146 ;) which…
Weaving
