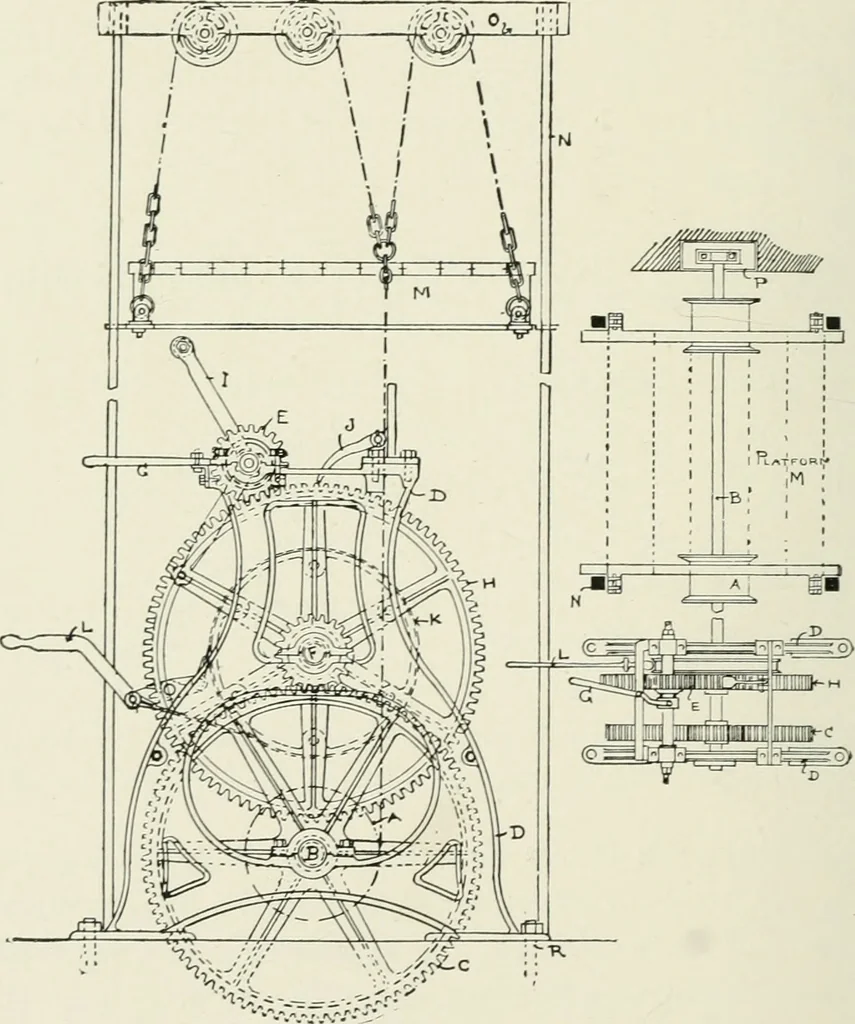

iron-frame hoisting apparatus. This is composed of two 30-inch-diameter wheels //and C arranged on the cast-iron frameD, and worked by the crank / and 6-inch-diameter pinionwheel /t, as shown in plan and elevation. 128 ARCHITECTURAL IRON AND STEEL. A heavy chain is used for raising the platform. It… … is thrown off the small shaft by the arm G; then a brake onwheel K worked by the lever arm L prevents any sudden fall-ing of the platform. The framework is 4 feet high by 3 feetlong by 22 inches wide. The crank arms extend 14 inches oneach side, beyond the width of frame. In setting the framework…
