The art of weaving, by hand and by power, : with an introductory account of its rise and progress in ancient and modern times. For the use of manufacturers and others. (1844)
Gilroy, Clinton G · New York: : George D. Baldwin · leaf 111

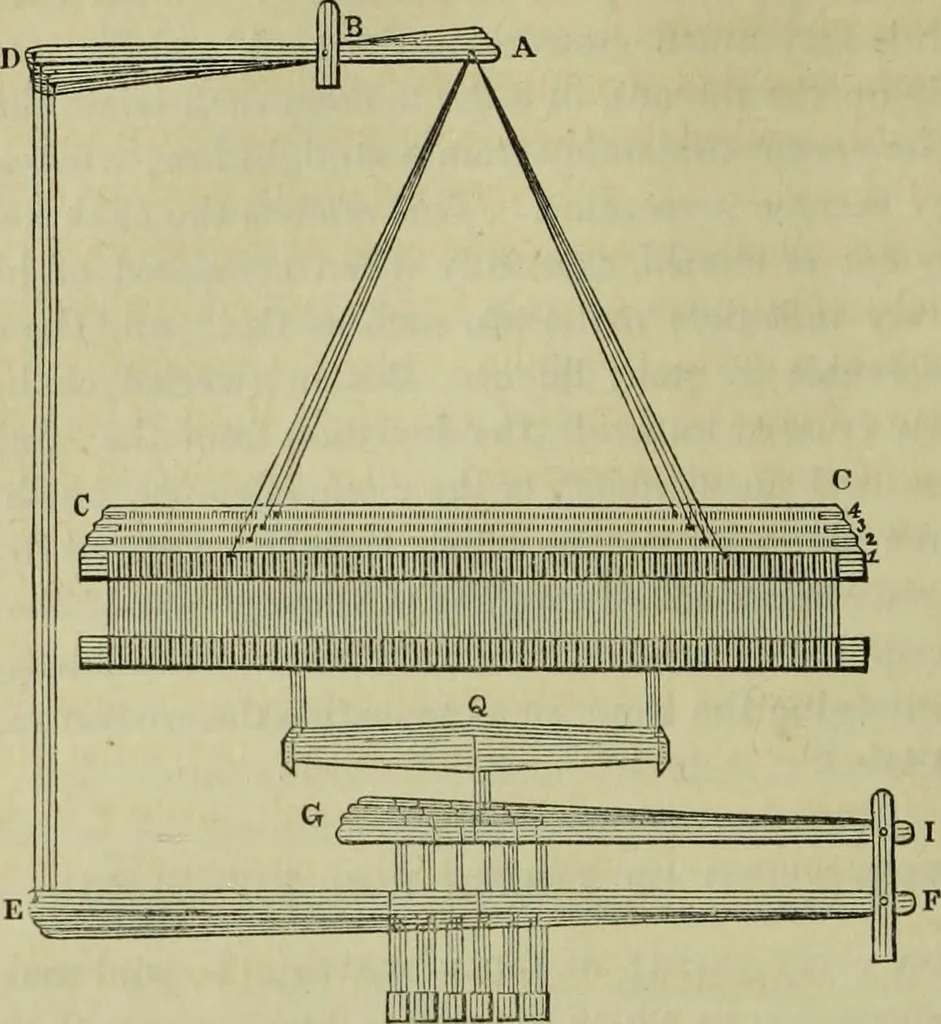

ecessary, that the mounting of the loomshould be adapted to the purpose for which it is intended, and asthe succession of working the headles by means of the treadles mayfrequently vary, the mounting which connects every leaf with thetreadle, and from which its motion is derived, must be such that… … 4 3 AB 1 2 In this figure four leaves of the headles are represented at C,perpendicularly above which are four levers, moving upon centresat B. From one end of each of these levers at A, a leaf of theheadles is suspended by the two oblique placed cords : these cordsmeeting below the lever, continue…
Weaving
