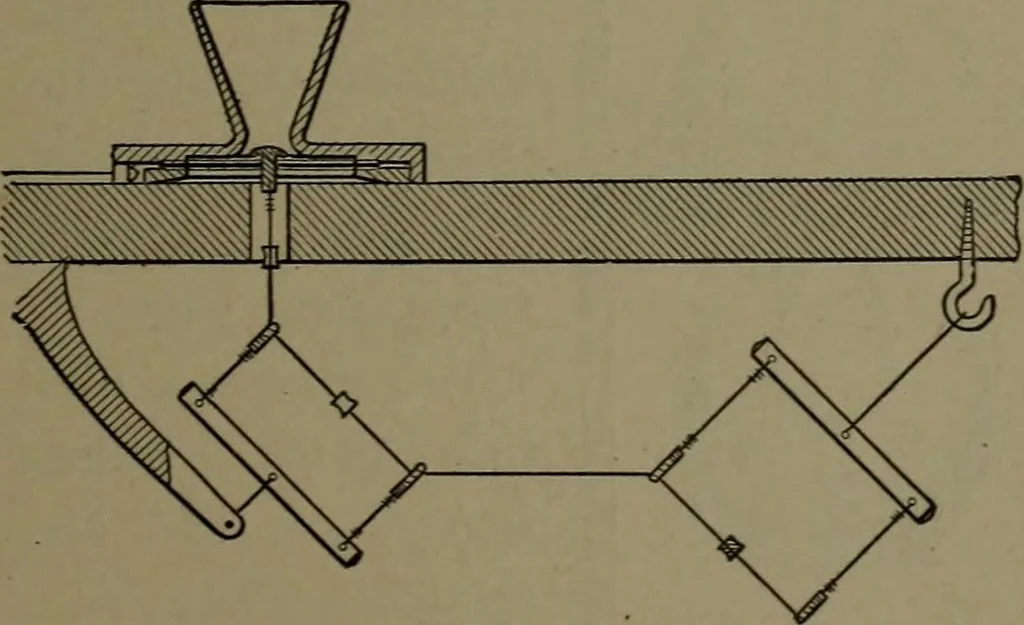

nds twisted together and coated with varnish to bind them and pre-vent them rubbing upon one another. 34. ACOUSTIC TELEPHONE. Wire suspension to facilitatetransmission of sound bymaking the angular turnsat about 45°, with rub-ber straps wired to a yokeof wood as shown. Smalldampers of rubber or… … 32 TRANSMISSION OF POWER. 35. ACOUSTIC TELEPHONE. The front board, A, of the boxis provided with a central aperture. The diaphragm, b^ is stretched over the central opening of a board, D, which hasstrengthening ribs on its under side and alongthe edges. An annular block of wood, F,whose thickness…
