The art of weaving, by hand and by power, : with an introductory account of its rise and progress in ancient and modern times. For the use of manufacturers and others. (1844)
Gilroy, Clinton G · New York: : George D. Baldwin · leaf 155

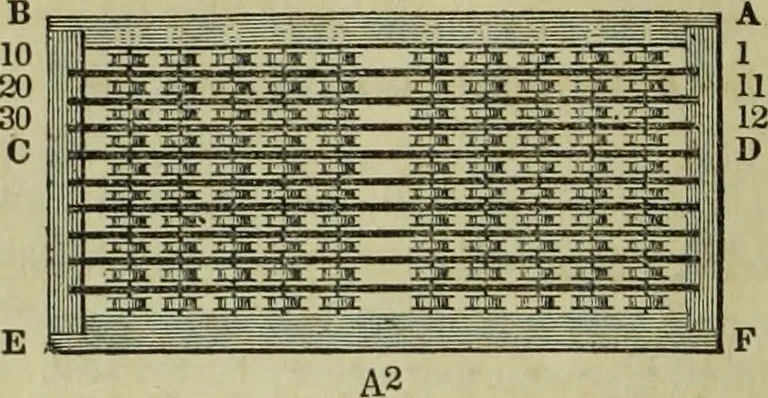

5 4 3 2 1 10 9 I 1I6I iiTI Q ^mmmmmm^mmmnmmnB is a front elevation of the common draw loom. The frame AA iscalled the carriage, from its use in supporting the harness; and restson the capes of the loom, which are seen in section at A2A2. Onthe top of thi3 frame is fixed the pulley box E2 which… … is placed in a slanting position sufficient to allow the tail cords BBto sink in opening the sheds, without obstruction from the frame orpulleys below. The harness is composed of the following parts; namely, theneck twines, which extend from the neck of the harness, as pointedout by the figures of…
Weaving
