The art of weaving, by hand and by power, : with an introductory account of its rise and progress in ancient and modern times. For the use of manufacturers and others. (1844)
Gilroy, Clinton G · New York: : George D. Baldwin · leaf 384

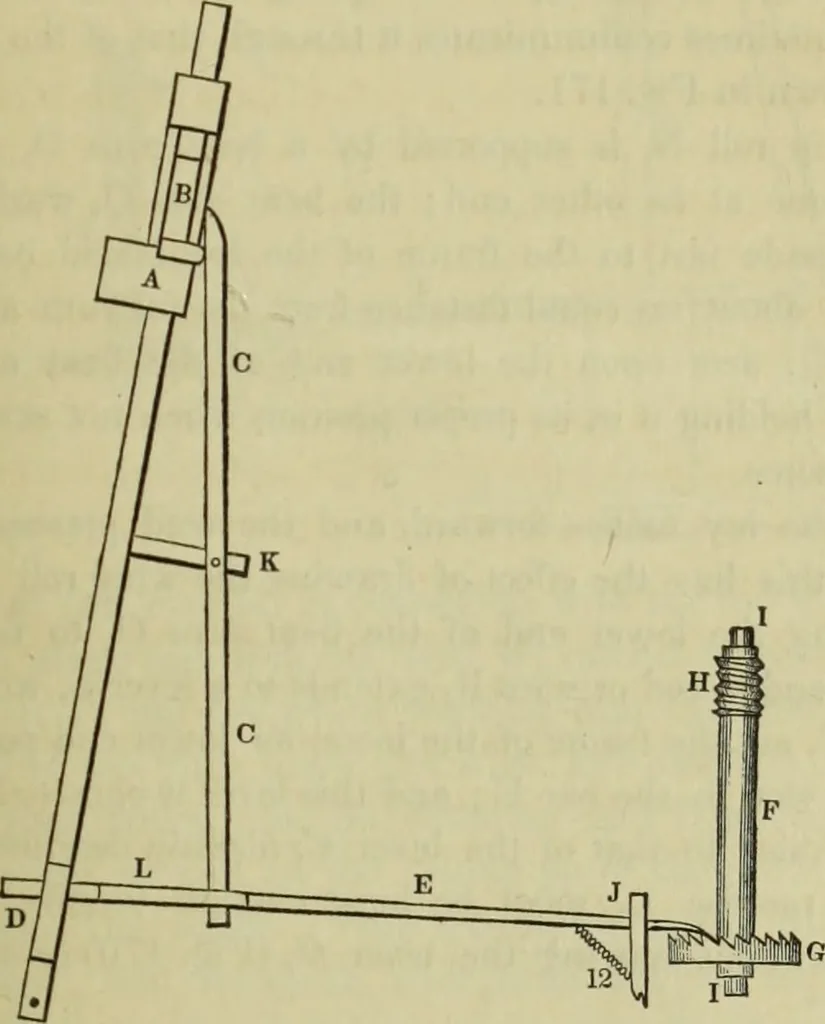

, a lever, extending downnearly as low as the bottom of the lay sword; D, the part of thelay in which the bar F, slides; F, a perpendicular shaft, having aratchet wheel G, at its lower end, and an endless screw or worm H,on its upper end which operates, by gearing, to give the requisitemotion to… … The following is the manner in which the bar E, receives its mo-tion from the spring reed B :— When the lay advances and brings the reed into contact with the *This alteration of Stones loom, notwithstanding its similarity to the ori-ginal, was made the subject of a patent by one Welcome A.rPotter,…
Weaving
