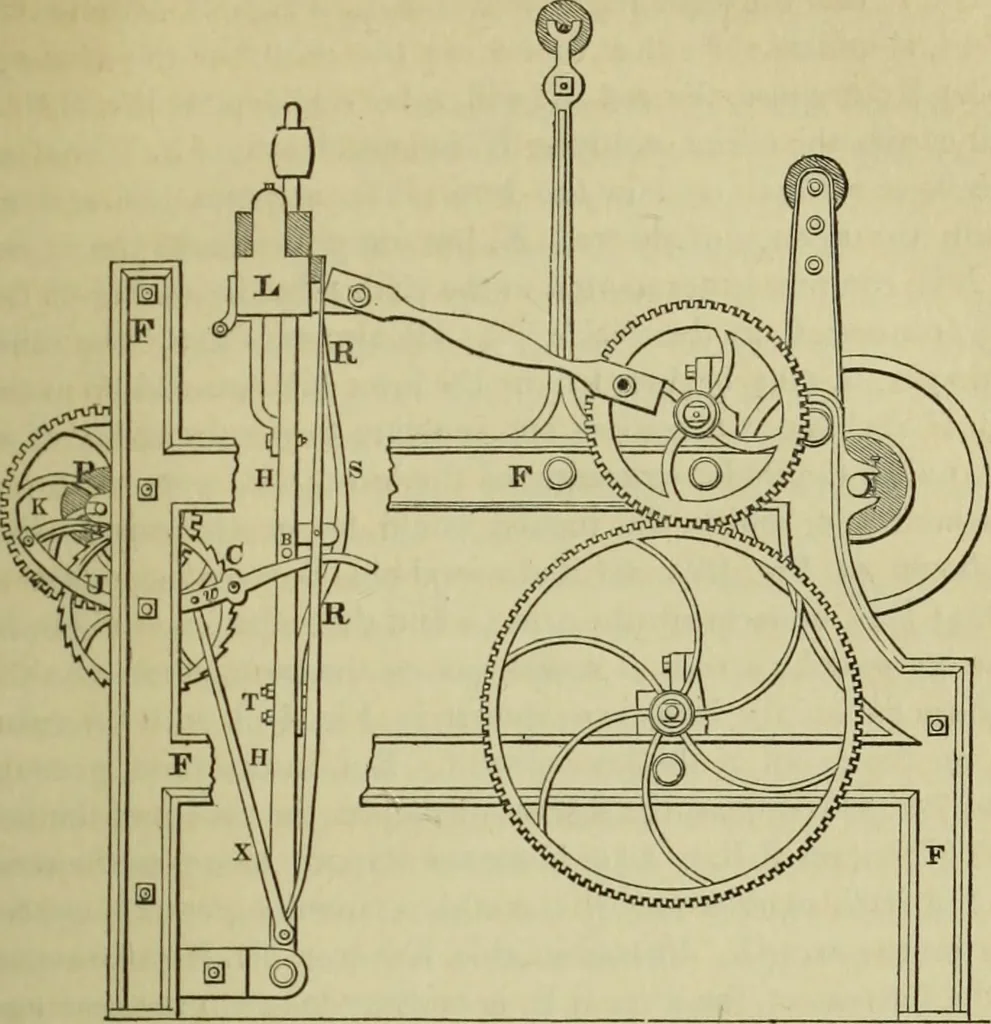

uite as applicable. F F F F, is the frame of the loom ; H H, the sword of thelay ; R R, the lever which receives motion from the vibrating reed,and is the same as that marked Q-, in Figs. 165,166,167 and 168,n, n, in Fig. 169, and C, in Figs. 170 and 171. The lever RR, inthis loom is made to beat… … shown at Fig. 169.) L, is the lay; B, a small friction roller orstud-pin fixed on the side of the lay, like that above the letter y, inin Fig. 169; except that in this case it is turned upside down, forsome purpose best known to Mr. H. himself. The arm C, beingacted upon by the roller B, will, of…
