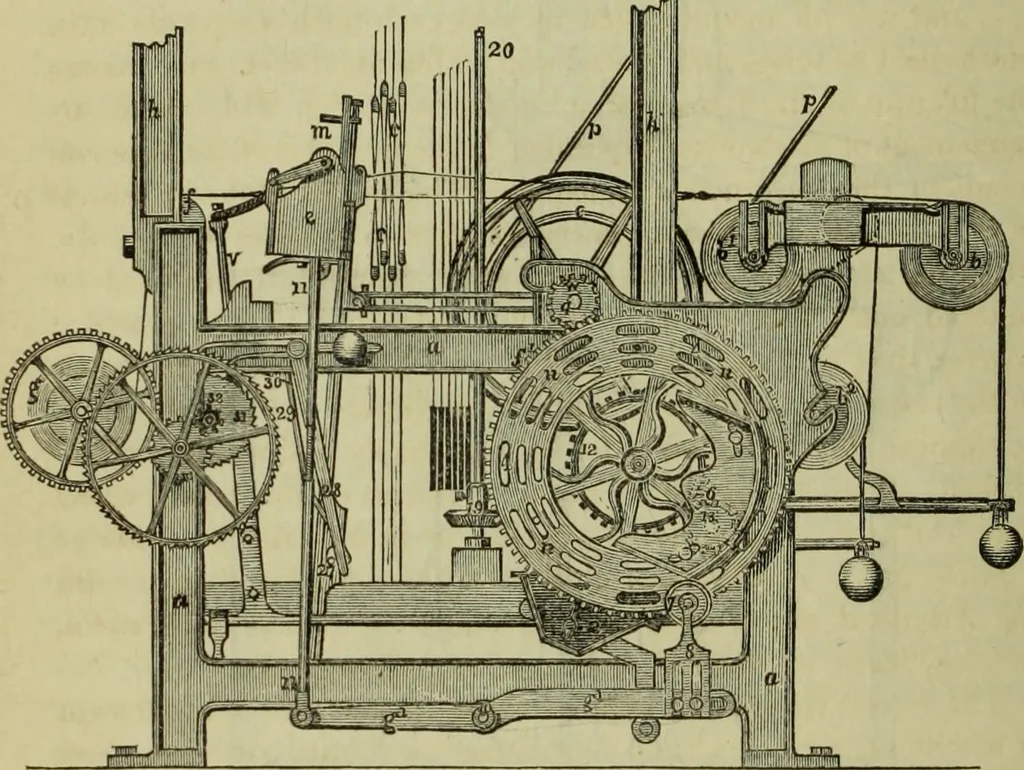

440 THE ART OF WEAVING. exhausted in the shuttle, or when the taking up of the clothupon the cloth roller is not equal to its production ; such motion be-ing governed by the ordinary beat or vibration of the lay. Fig. 212, represents a front elevation of the improved power loom;Fig. 213, a side… … The framing of the loom is marked a, a, a, supporting the severalwarp rollers b, b, b2, from whence the warp threads proceed throughthe headles c, c, also through the reed d, d, of the lay e, over thebreast beam jT, to the cloth roller g; as usual. This loom is alsoprovided with an additional…
