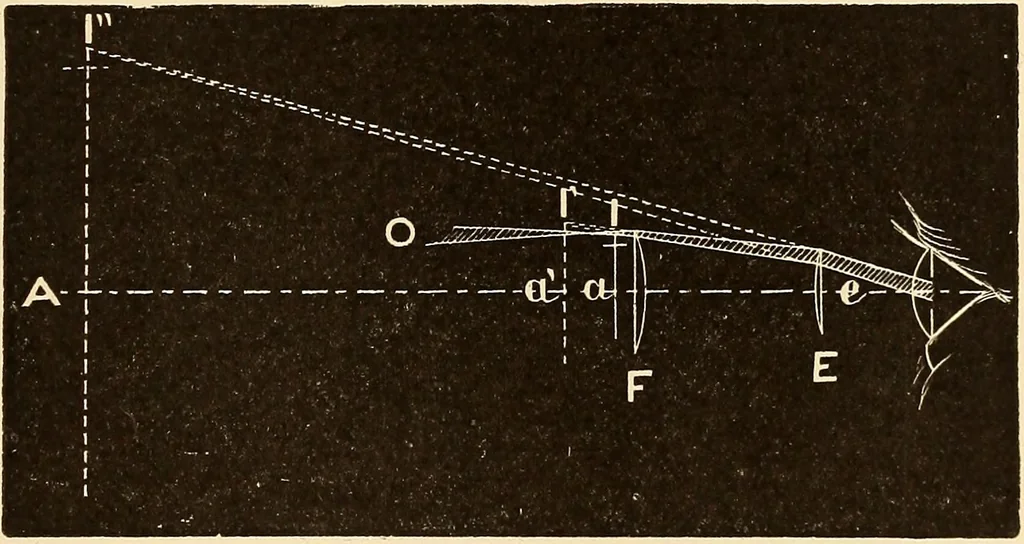

) of the focal image la. This image is viewedby the field lens F of the eye-piece as a real object, and the shadedpencil between F and E shows the course of these rays after de-viation by F. If there were no eye-lens E an eye properly placedbeyond F would see an image at T a. The eye-lens E… … Fig 22.—section of a positive eye piece. figure of the refracting telescope, every point of the object producesa pencil similar to 0 I, and the whole surfaces of the lenses Fand E are covered with rays. All of these pencils passing throughthe pupil go to make up the retinal image. This image is…
