Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 118

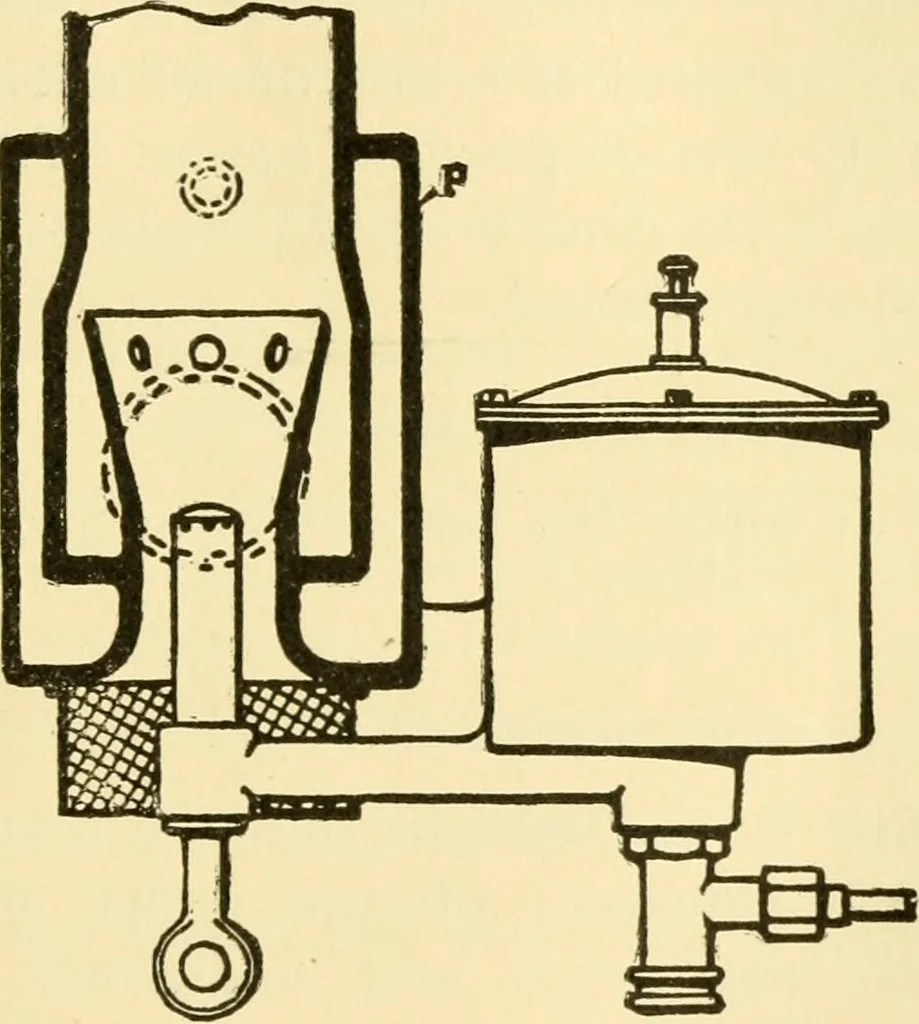

ource, the degree to which itmay be carried depends wholly upon the amount of heat CARBURETTERS 91 supplied, since the temperature of the liquid is being con-stantly raised to, or maintained at the proper point. Ques. How is heat supplied from an outside source? Ans. By providing means for heating… … Fig. 37.—A jacketed carburetter. The mixing chamber is shown surrounded by a jacket P, for heating the mixture. This is accomplished eitherby connection with the cooling water, or exhaust from the engine. Duringthe summer season, when the atmospheric temperature is high, the heatingarrangement may…
