Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 133

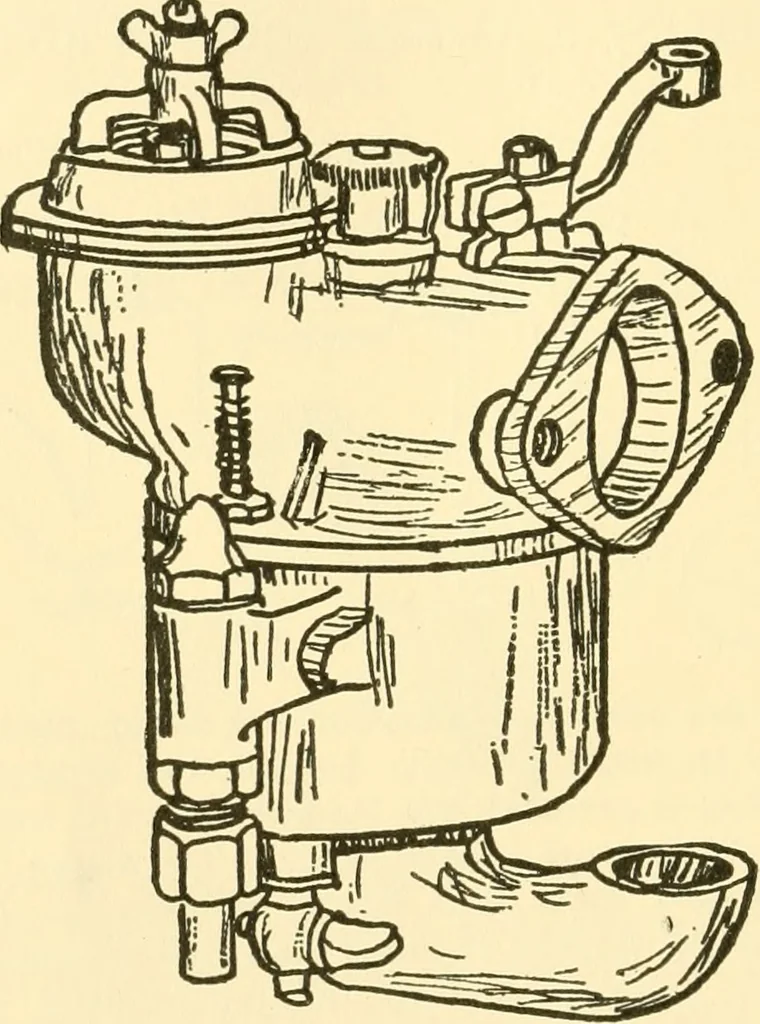

on valve opening. Ques. How is the size determined for a muhi-cylinder engine ? Ans. The outlet area of the carburetter is made equalto the area of one valve opening multiplied by the numberof inlet valves that are open at one time, as determined fromthe sequence of cranks. 106 A UDELS ANSWERS… … Fig. 48.—^The Breeze Carburetter. All adjustments are independent.Gasoline and air adjustments are placed on top, the gasoline valve hasfigiu-es and graduations stamped on a dial head indicating the degree of feedopening. There is a central draught for the primary air which passes througha venturi…
