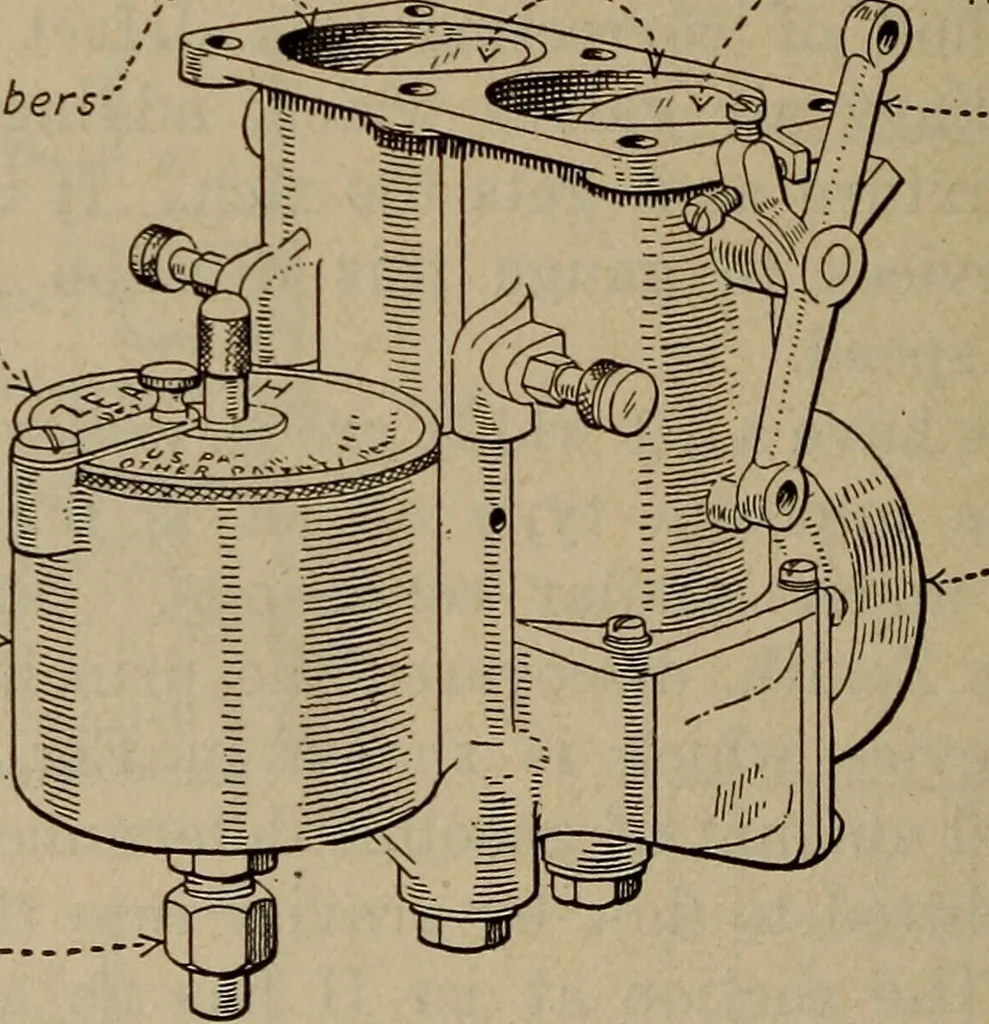

on. In addition to the compound nozzle the Zenith isequipped with a starting and idling well, shown in thecut of Model L carburetor at P and J. This terminatesin a priming hole at the edge of the butterfly valve,where the suction is greatest when this valve is slightlyopen. The gasoline is drawn up… … ~-Thro-H-le Discs ThroH/eLever .-Air Intake Fig. 53.—The Zenith Duplex Carburetor for Airplane Motors of the V Type. with the butterfly valve opened further the priming wellceases to operate and the compound nozzle drains the welland compensates correctly for any motor speed. With the coming of the…
