Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 149

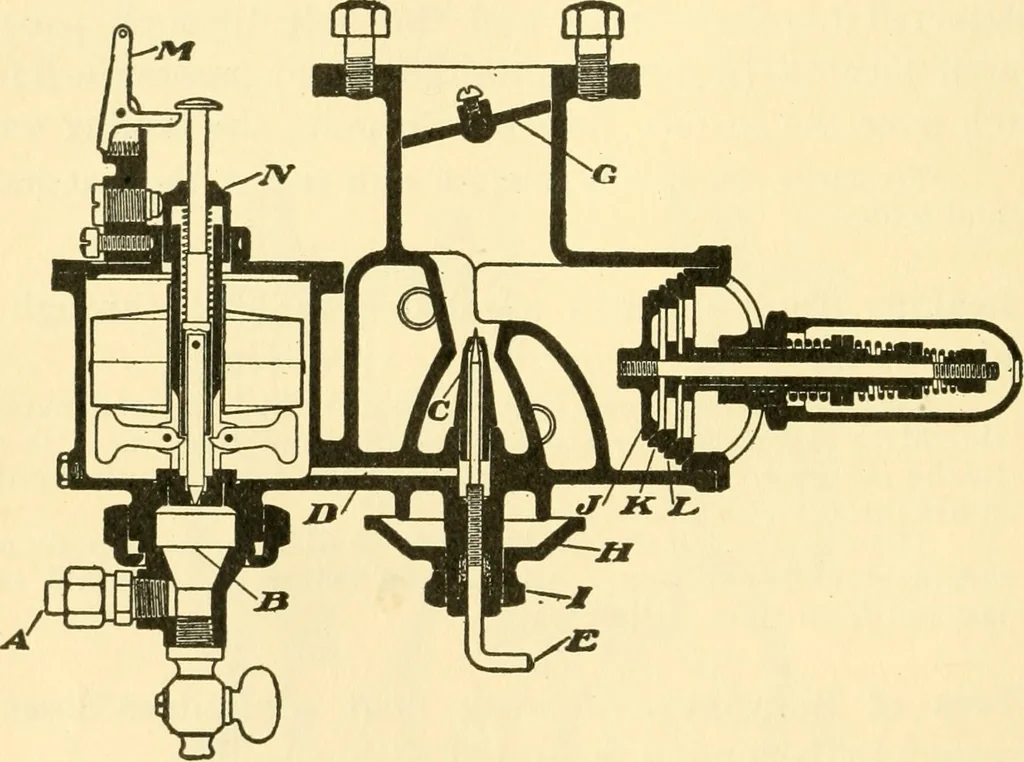

used for both gasoline and water. 122 A UDELS ANSWERS Stale Gasoline.—When a car is not used for some timethe gasoHne in the float chamber loses its strength. If the be engine should not start, the tank valve shouldclosed, and the carburetter drained through the pet cock, whichis usually provided… … Fig. 56—The D. K. W. Carburetter. In operation, gasoline enters atA, and passes upward through screen B, and then through the float valve tothe float chamber. From the float chamber the gasoHne reaches nozzle Cthrough passage D. The flow of gasoline.^through C is regulated by the needlevalve E; G…
