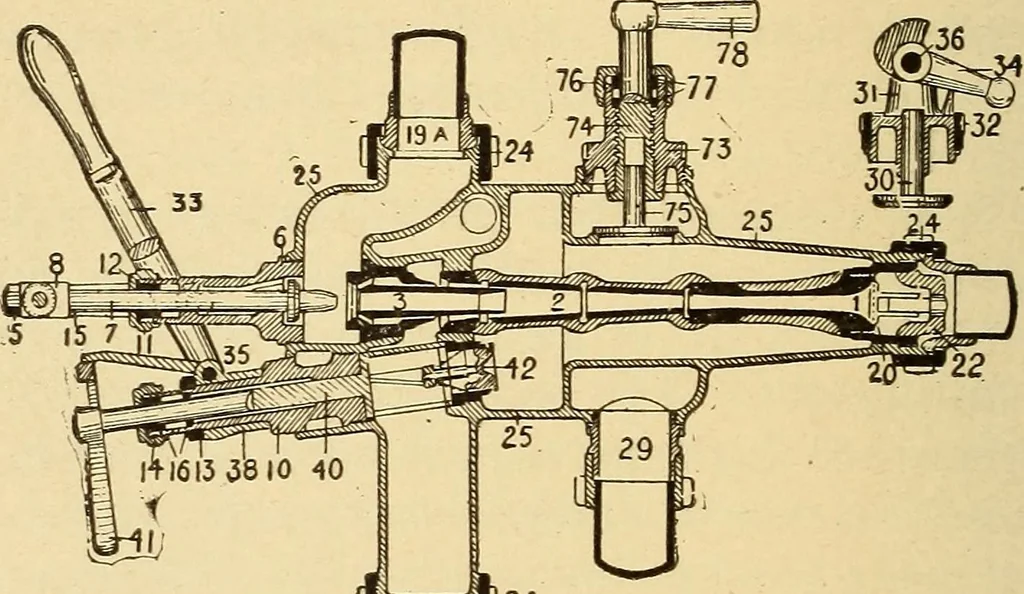

Fig. 3.Sellers Class M Improved Self-Acting Injector. The Sellers improved self acting injector known asClass M is of special form and is interchangeablewith the Monitor, Ohio, and other injectors havingconnections standard therewith. This form is shown by a general view in Fig. 3 andby sectional… … PA 4 Fir .4. Sellers Class M Improved Self-Acting Injector.—(Sectional View). LIST OF PARTS. 1. Delivery Tube. 25. Injector Body. 2. Combining Tube. 27. Wrench. 3. Steam Nozzles. 29. Waste Pipe. 5. Spindle Nut, 30. Waste Valve. 6. Steam Stuffing Box. 31. Guide for No. 30. 7. Spindle. 32. Jam Nut…
