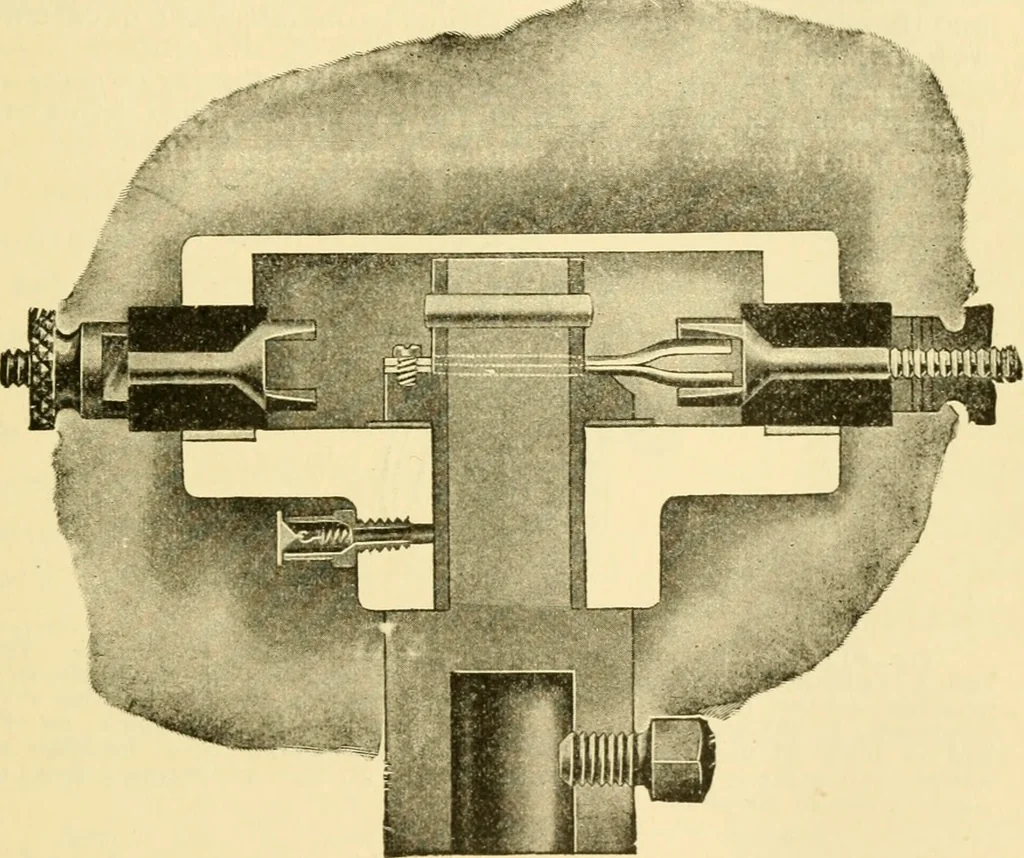

time of engage-ment of the stationary contacts with the rotor may bevaried with respect to the engine cycle. This is accom-plished by constructing the stationary part of the timer IGNITIOh 171 so that it may rotate around the shaft through a smallarc. This is controlled by a lever on the steering… … Fig. 90.—Sectional view of the Pittsfield timer. Contact is made bymeans of phosphor bronze springs which revolve on the timer shaft andengage with stationary contacts set in the timer ring and insulated by hardrubber. A set screw fitted to the lower end of the revolving part allows it tobe placed…
