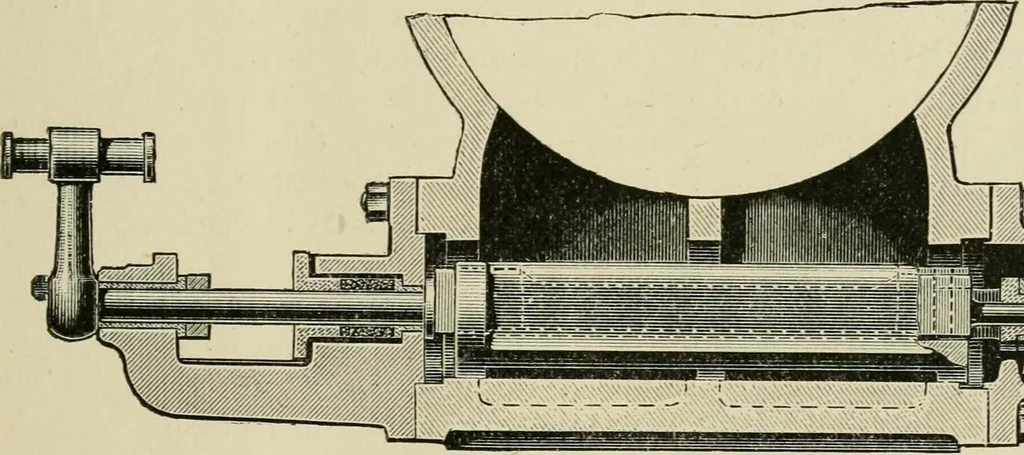

me. The piston rod is carried through the bacof the cylinder, and carries a slide block sliding i;guides which are independent of the cylinder. Imost cases the makers prefer to supply a patenteesupport for the piston rods, which consists of a roUeturned with a circular groove to suit the rod,… … Fjg. 91. slides is to sustain the piston rod and pistoiand prevent the latter wearing the cylinder ovaland the roller support has many claims for coisideration. The valves used in this engine are cthe Corliss type, and are directly controlled byhigh speed governor. In order to avoid the groovinof…
