Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 205

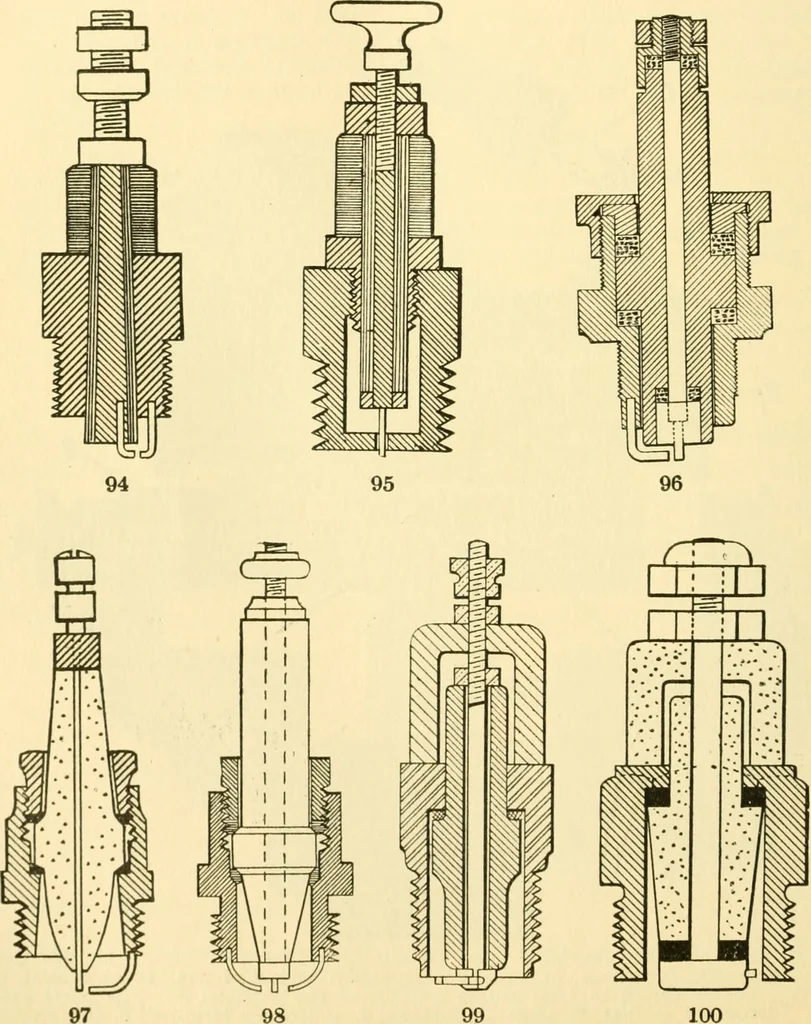

buter plate; 8, secondary revolvingcontact segment; 9, taper pin; 10, secondary stationary terminals; 11, casing;12, secondary terminal for lead to coil; B. slide bearings; C, hook; D, eye;E, secondary cable. The operation of this distributer is described in the text 178 A UDELS ANSWERS Ques. What… … Figs. 94 to 100.—Sections of well known spark plugs. The first five haveporcelain- insulation, the last two mica. GNITION 179 Ques. Describe the ground electrode. Ans. This is attached to a metal cup which has anexternal thread so that it may be screwed into the metalof the cylinder, thus forming…
Automobiles
