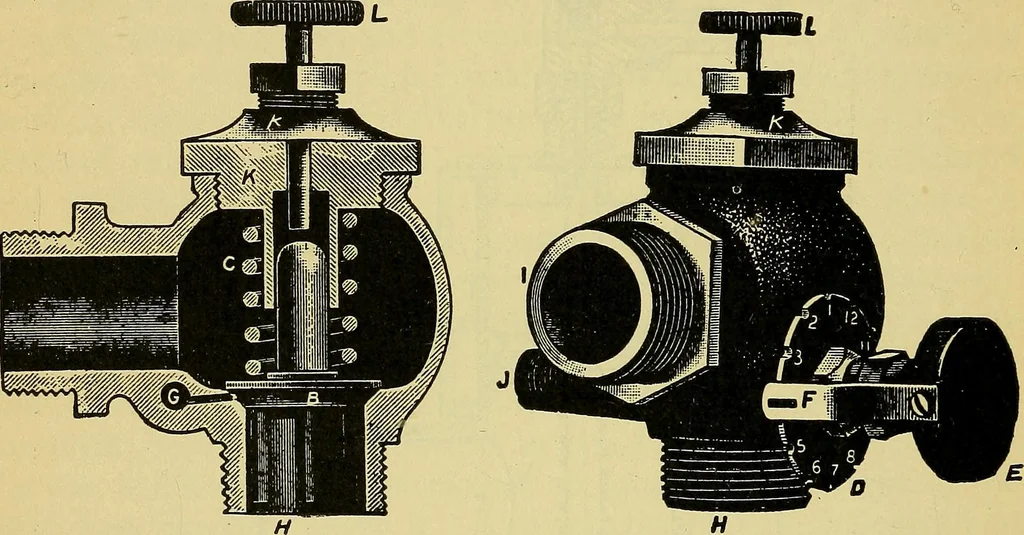

handle, B. Connection with the interior of the main cylindricalchamber and the combustion space of the cylinder is had by thetube, C. The tube, D, is also connected with the combustionspace so as to permit the heated products of combustion to cir-culate through the jacket or passage around the… … FlG. 174.—The James Valve. B, fuel inlet valve; C, spring controlling1 B; D is the scaledial showing proportions of air and gasoline; E, the wheel controlling gasoline valve;F, clip or top for holding E in position; G, gasoline supply tube; H, air inlet; I, en-trance to cylinder; J, entrance for…
