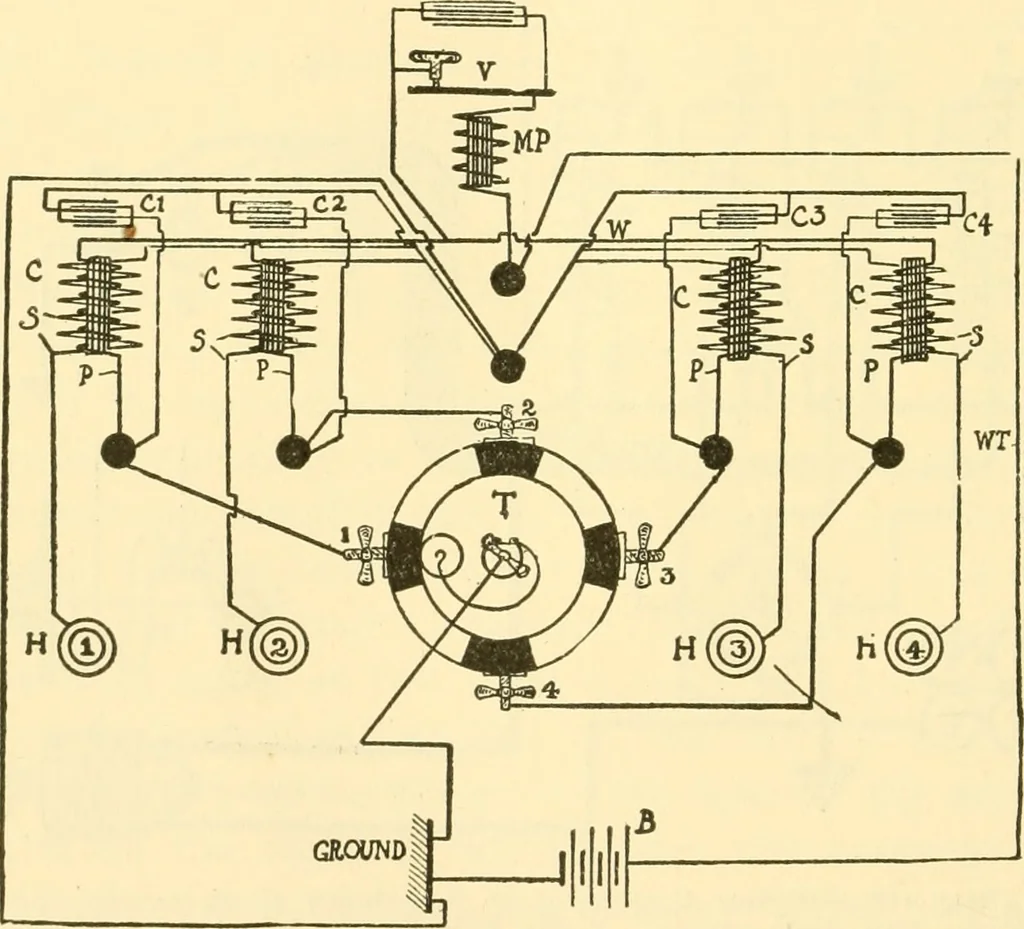

rrent flows through thesecondary winding, to the spark plug, across the gap pro-ducing a spark, and returns through the metal of the engine,timer, and back to the coil. As the rotor of the timerrevolves it touches each of the stationary contacts, and in 188 AUDELS ANSWERS so doing the above cycle… … Kig. 106.—Circuit diagram of a master vibrator coil. B, is the battery;C, the unit coils; CI, C2, etc., the condensers; P, the primary windings andS, the secondary windings; HI, H2, etc., the spark plugs; T, the timer; MPthe master primary; V, the vibrator; W, the common primary connection;1, 2,…
