Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 223

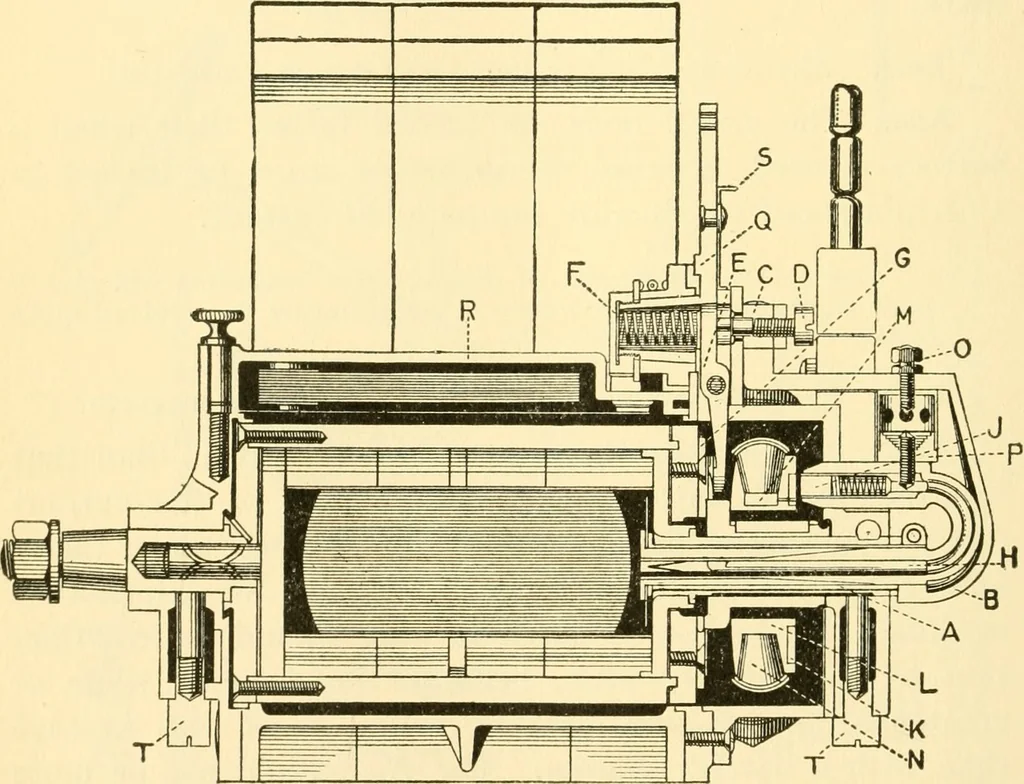

rupter, which breaks the primary circuit at the timeof the spark, should also receive attention and be kept in propercondition. 196 A UDELS ANSlVtrRS Ques. Describe an ignition system with a high tension magneto. Ans. In fig. 109, the magneto is shown at the left.It is of the true high tension… … Iig. 110.—Section through the Simms-Bosch high tension magneto. A.armature shaft; B, curved arm carrying high tension lead; C, lug supportingscrew, D, adjusting contact breaker, E, against spring. F; G, revolving sleevecarrying face cams; H, high tension lead wire; J, carbon brush of…
