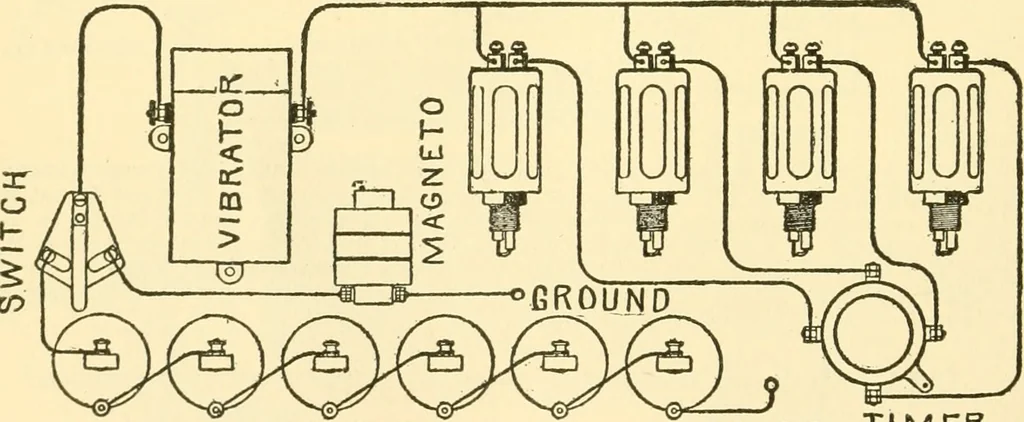

rted from theseat by pressing the button. The switch handle, whichprojects through a slot in the casing of the coil, locks in 198 A UDELS ANSWERS three positions by a spring, the positions being designatedrespectively, Magneto, Off, and Battery. Thewiring connections are as shown in the… … BATTERY GROUND TIMER Fig. 112.—Wiring diagram of a coil spark plug system. There is noground connection for the secondary terminals, as these are connectedinside directly to the electrodes of the spark plug, both electrodes beinginsulated. A condenser and vibrator are placed in the box shown at the…
