Hawkins electrical guide ... : questions, answers & illustrations : a progressive course of study for engineers, electricians, students and those desiring to acquire a working knowledge of electricity and its applications ; a practical treatise (1914)
Hawkins, N. (Nehemiah), 1833-1928 · New York : T. Audel & Co. · leaf 108

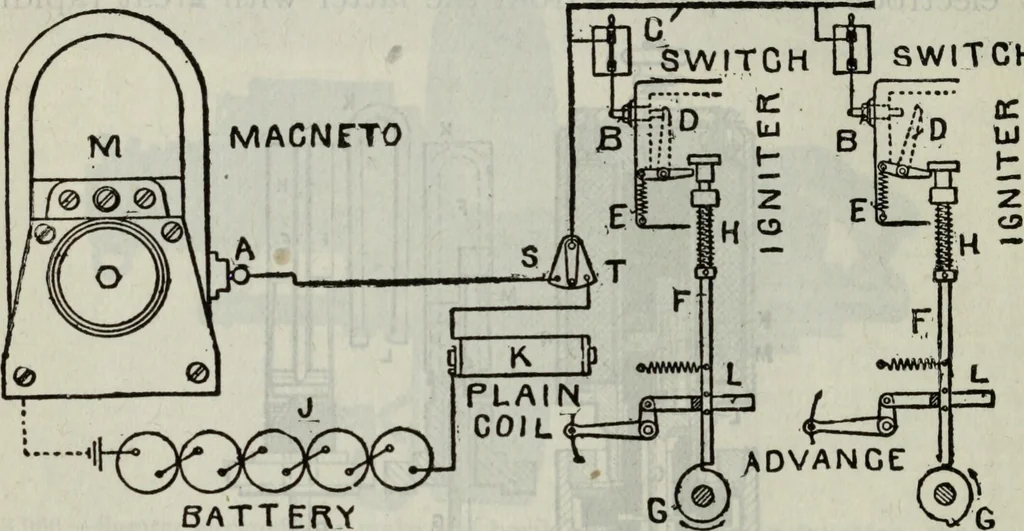

aused by the inductance—that is, by the iner-tia or tendency of the current to continue flowing after theseparation of the contact points. The current may be derived from either a primary battery,storage battery, or low tension magneto. 2,762 HAWKINS ELECTRICITY Ques. Name the elements in a low… … BATTERY Fig. 3,971.—Low tension or make and break system. Two sources of current supply areprovided: a dry battery and a magneto. One terminal of both the battery and magnetois grounded; the other terminal A, of the magneto M, is connected to the point S, of atwo way switch. The cells comprising…
