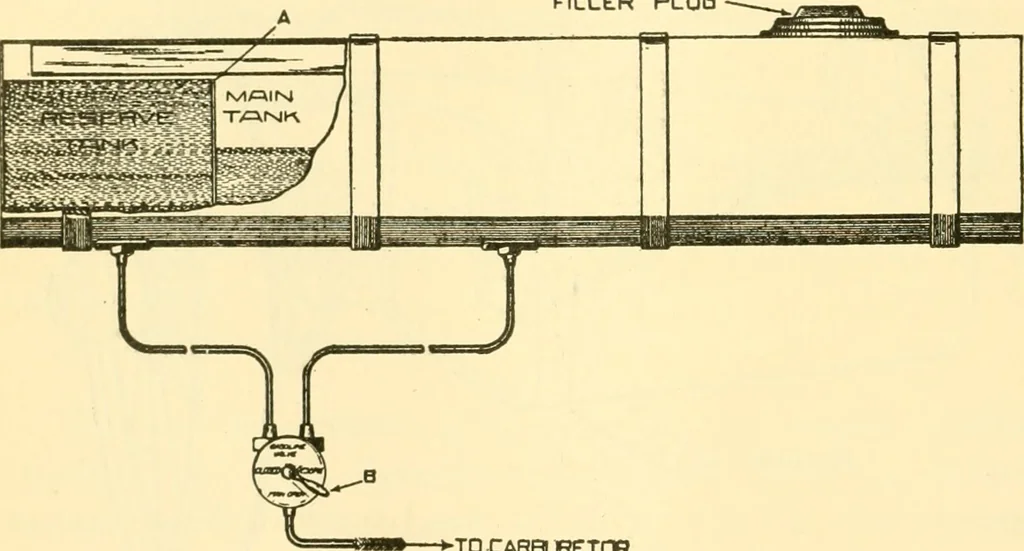

oat chamber of the car-buretter to fill, it should be noted that the float pin is up. 228 AUDELS ANSWERS When the float pin is up it indicates that the float chamberhas received a supply of gasohne from the tank. If the pin remaindown, there is some obstruction in the supply pipe preventingthe flow… … TDCARajRETOR Fig. 141.—The Franklin gasoline tank. The tank is divided by the wallA into two compartments, called viain tank and auxiliary or reserve tank.It should be noted that in order to fill the reserve tank there must beenough gasoline in the main tank to flow over the dividing wall A.…
