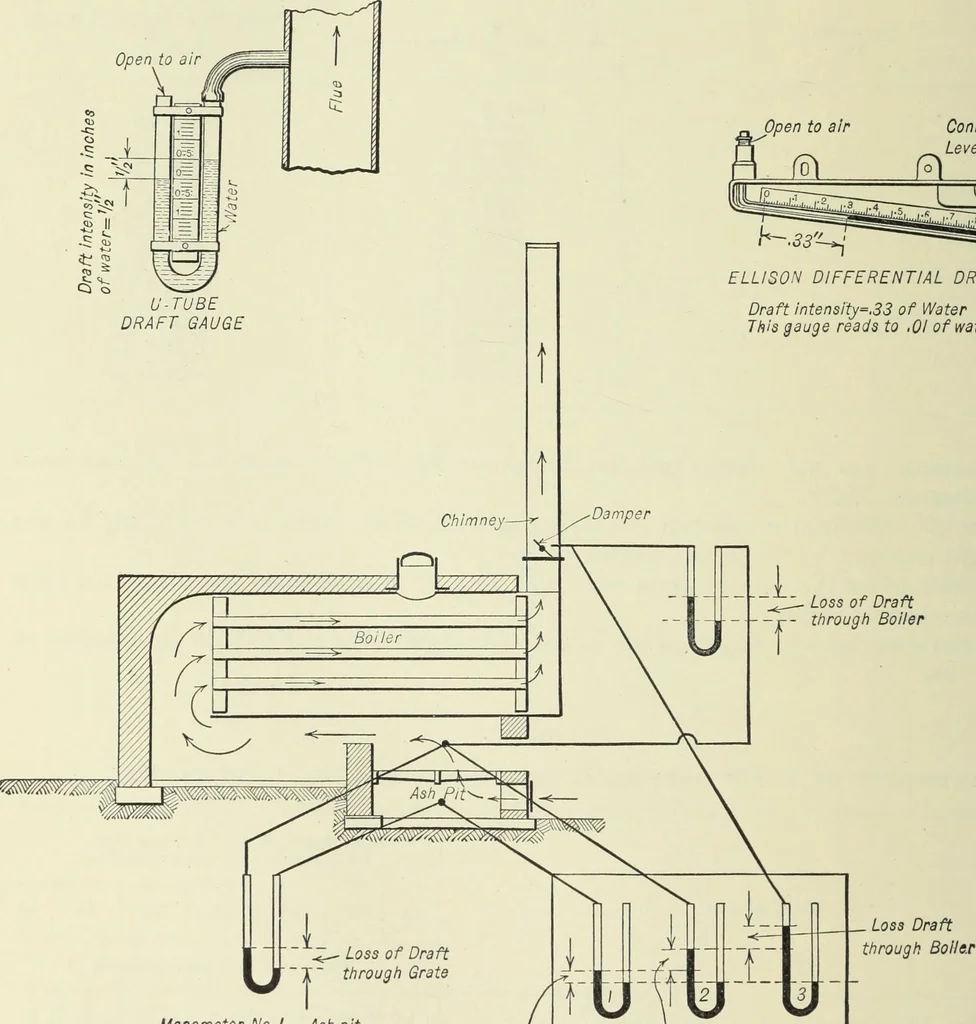

ELLISON DIFFERENTIAL DRAFT GAUGE Draft intensity=.33 of Water This gauge reads to .01 of water direct … Manometer No. I Ash pit 2 Over fire a 3 Above damper Loss of Draft \ Loss Draftin Ash Pit through Grate Fig. 3. Illustrating Draft Losses in a Boiler Plant. Note A piezometer tube reading, when the pressure is below atmospheric, includes the velocity pressure, andis therefore the total pressure or…
