Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 268

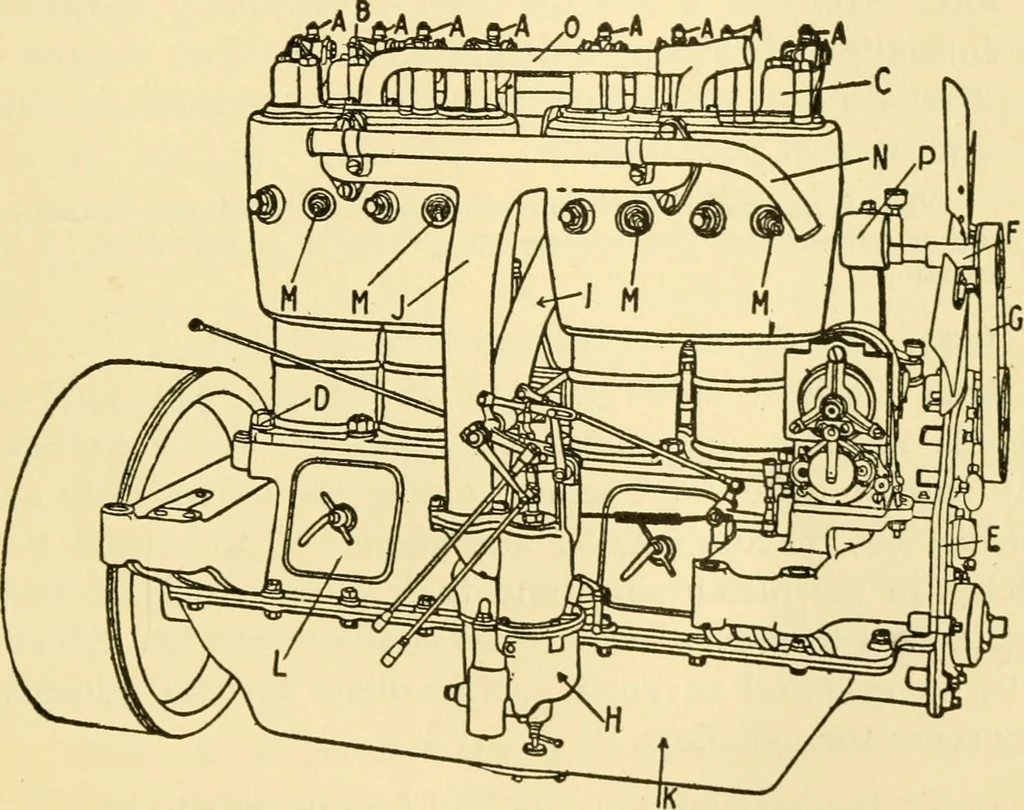

cates a broken ring. Ques. What causes the inlet valve to stick?Ans. Usually an incrustation of gummed oil. GAS ENGINE OPERATION 241 Ques. How should the length of the valve stem be adjusted ?Ans. If too long, the end of the valve stem should betiled until a card can be inserted between the stem… … Fig. 150.—Pope-Hartford engine. A, valve operating lever grease cups;B, valve operating lever; C, valve cage cover; D, cylinder hold down nut;E, timing gear case cover; F, cooling fan; G, cooling fan belt; H, carburetter;I, carburetter hot air pipe; J, gasoline inlet upper pipe; K, engine crank…
